Same model may have multiple batches, images only for reference.

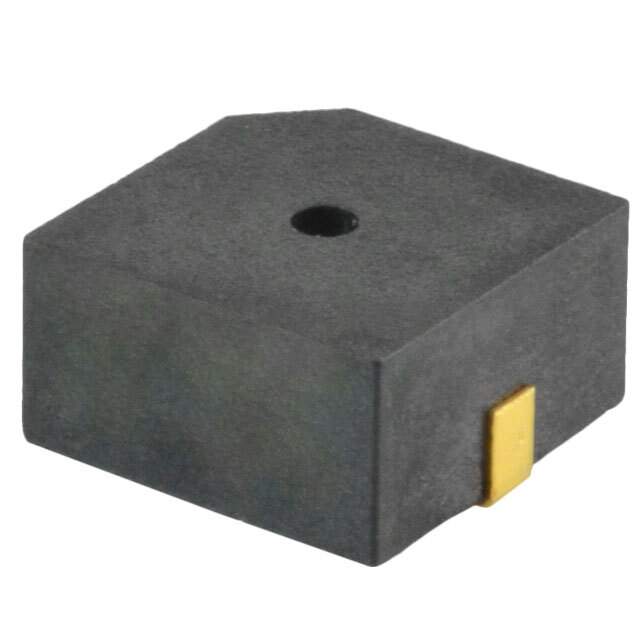

CMI-9653S-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

CMI-9653S-SMT-TR

Part No CMI-9653S-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 3V 9.6X9.6MM SMD / Buzzers Indicator, Internally Driven Magnetic 3 V 30mA 2.7kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
Datasheet
CMI-9653S-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr CUI Devices
Series CMI
Package Tape & Reel
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 3 V
Voltage Range 2 ~ 5V
Frequency 2.7kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 75dB @ 3V, 10cm
Current - Supply 30mA
Port Location Top
Temperature Range - Operating -20°C ~ 70°C
Ratings Washable
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.378" L x 0.378" W (9.60mm x 9.60mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number CMI-9653
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1336874-CMI-9653S-SMT-TR
Ultra Librarian 3D Model Ultra Librarian CMI-9653S-SMT-TR CAD Model

Description

The CMI-9653S-SMT-TR is a magnetic alarm buzzer from CUI Devices. CUI Devices

  • Type: Magnetic Alarm Buzzer
  • Sound Pressure Level (SPL): 75dB @ 3V and 10cm
  • Frequency: 2.7kHz
  • Input Type: DC
  • Operating Current: 30mA
  • Voltage Range: 2~5V
  • Packaging: Tape and Reel
  • Standard Package: 600 Pieces
  • Mounting Type: Surface-Mount
  • Operating Temperature Range: -20°C to 70°C
