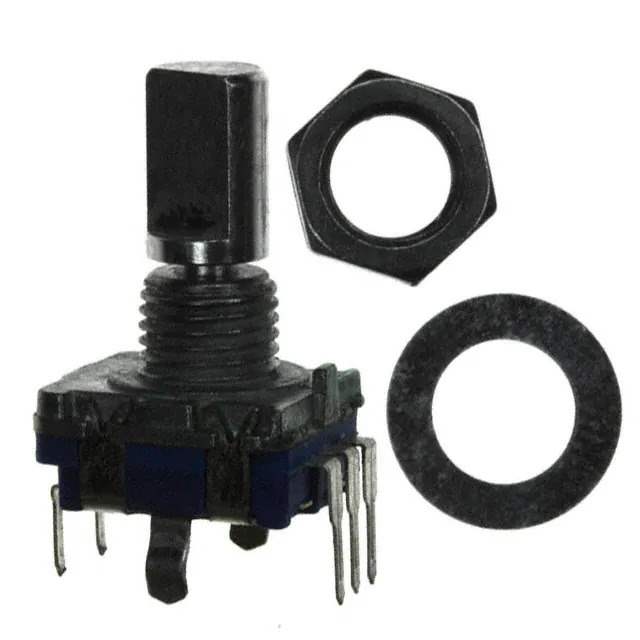

ACZ11BR1E-15FD1-20C Real Image
Same model may have multiple batches, images only for reference.

ACZ11BR1E-15FD1-20C

Part No ACZ11BR1E-15FD1-20C
Manufacturer CUI Inc.
Catalog Encoders
Description ROTARY ENCODER INCREMENT 20PPR / Rotary Encoder Incremental 20 Quadrature (Incremental) Vertical
Datasheet
ACZ11BR1E-15FD1-20C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr CUI Inc.
Series ACZ11
Package Box
Product Status Active
Programmable Not Verified
Encoder Type Incremental
Output Type Quadrature (Incremental)
Pulses per Revolution 20
Voltage - Supply 5V
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number ACZ11BR1
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 859389-ACZ11BR1E-15FD1-20C
Ultra Librarian 3D Model Ultra Librarian ACZ11BR1E-15FD1-20C CAD Model

Description

The ACZ11 series encoder, with Win Source Part Number 859389-ACZ11BR1E-15FD1-20C, is a reliable sensor for various applications. CUI Inc. manufactures it.

  • Series: ACZ11
  • Termination: PC pin
  • Orientation: Vertical
  • Output Type: Quadrature (Incremental)
  • Actuator: 6mm dia flatted end
  • Switch: Programmable built-in switch
  • Encoder Type: Incremental
  • Pulses per Revolution: 20
  • Detent: Yes
  • Rotational Life: 30K cycles min.
  • Voltage: 5V
  • Mounting: Panel or PCB through-hole
  • Status: Active
  • Manufacturer: CUI Inc.
