PSC2-1CB
Same model may have multiple batches, images only for reference.

PSC2-1CB

Part No PSC2-1CB
Manufacturer CTS Thermal Management Products
Catalog Thermal - Heat Sinks
Description HEATSINK CLIP ON BLACK TO-220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr CTS Thermal Management Products
Series PSC2
Product Status Obsolete
Type Board Level
Package Cooled TO-202
Attachment Method Clip
Shape Rectangular, Fins

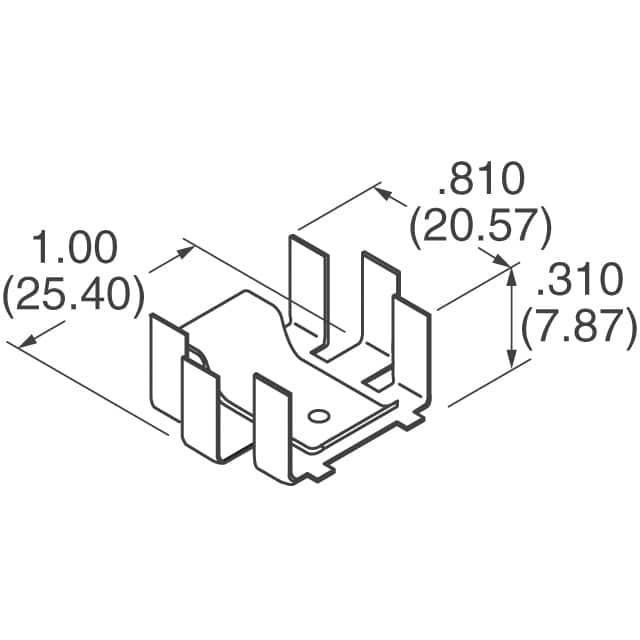

Length 0.810" (20.57mm)
Width 1.000" (25.40mm)
Fin Height 0.310" (7.87mm)
Thermal Resistance @ Natural 41.70°C/W
Material Aluminum
Material Finish Black Anodized
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 930900-PSC2-1CB
Ultra Librarian 3D Model Ultra Librarian PSC2-1CB CAD Model

Description

The 930900-PSC2-1CB is a board level heat sink from CTS Thermal Management Products.

  • Series: PSC2
  • Length: 0.810" (20.57mm)
  • Width: 1.000" (25.40mm)
  • Material: Aluminum
  • Shape: Rectangular with fins
  • Cooled Devices: TO-202 Packages
  • Attachment Method: Clip
  • Thermal Resistance (Natural Flow): 41.70°C/W
  • Finish: Black Anodized
  • Product Status: Active
