Same model may have multiple batches, images only for reference.

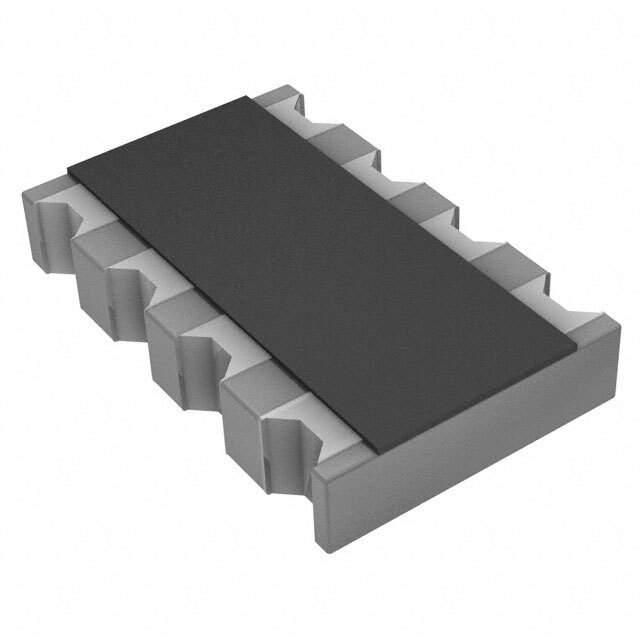

742C083000XP Real Image
Same model may have multiple batches, images only for reference.

742C083000XP

Part No 742C083000XP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES ZERO OHM 1206 / 0.0 Ohm Jumper 62.5mW Power Per Element Isolated 4 Resistor Network/Array 1206 (3216 Metric), Concave, Long Side Terminals
Datasheet
742C083000XP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 0.0
Tolerance Jumper
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names 742C083000XPTR,742C083000XPDKR,742C083000XPCT,742C083000XP-ND
Standard Package 5,000
Win Source Part Number 1129652-742C083000XP
Ultra Librarian 3D Model Ultra Librarian 742C083000XP CAD Model

Description

The CTS Resistor Products 742 series is a resistor network/array that can operate in a temperature range of -55°C to 125°C.

  • Resistors: 4
  • Power per element: 62.5mW
  • Tolerance: Jumper
  • Resistance: 0.0 Ohm
  • Package: 1206 (3216 Metric), Concave, Long Side Terminals
  • Package Type: Tape & reel
  • Mounting Type: Surface mount
  • Category: Resistor
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: REACH unaffected
  • HTSUS Code: 8533.21.0020
