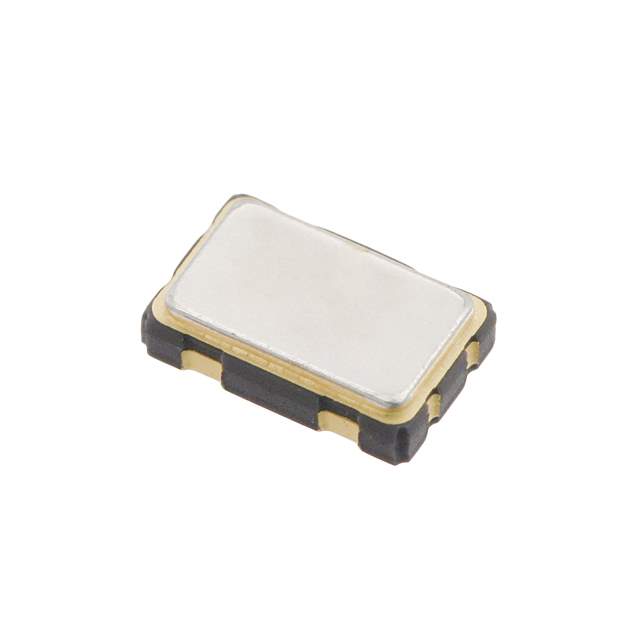

636L3C025M00000 Real Image
Same model may have multiple batches, images only for reference.

636L3C025M00000

Part No 636L3C025M00000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ HCMOS TTL / 25 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series 636
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 16mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 636L3C025.00000,CTX697TR,CTX697CT,CTX697DKR,Q2850704
Standard Package 1,000
Win Source Part Number 1039640-636L3C025M00000
Ultra Librarian 3D Model Ultra Librarian 636L3C025M00000 CAD Model

Description

The 1039640-636L3C025M00000 from CTS-Frequency Controls is an oscillator with a frequency of 25MHz and a function of enable/disable.

  • Frequency: 25MHz
  • Function: Enable/Disable
  • Frequency Stability: ±50ppm
  • Current Supply: 16mA
  • Current Supply (Disable): 10µA
  • Package Type: 4-SMD, no lead
  • Height Seated (Max): 0.051" (1.30mm)
  • Temperature Range (Operating): -20°C to 70°C
  • Base Resonator: Crystal
  • RoHS Compliant: Yes
