Same model may have multiple batches, images only for reference.

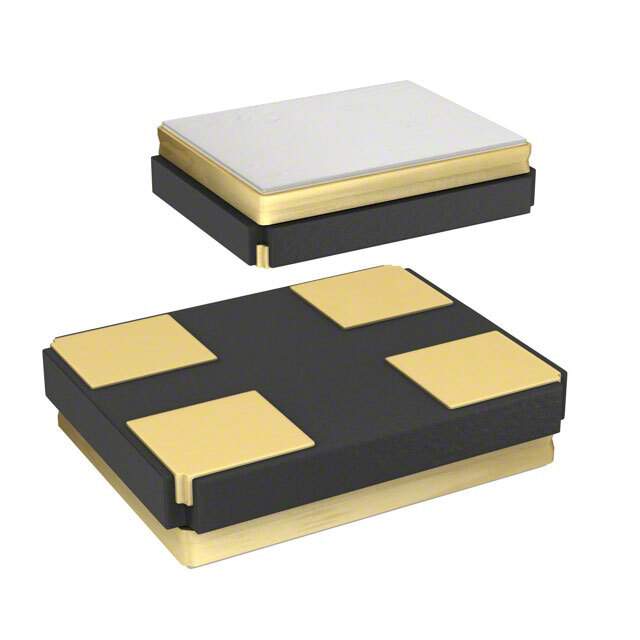

416F26035ALR Real Image
Same model may have multiple batches, images only for reference.

416F26035ALR

Part No 416F26035ALR
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 26.000 MHZ 12PF SMT
Datasheet
416F26035ALR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series 416
Packaging Reel package
Type MHz Crystal
Frequency 26MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 200 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Maximum) 0.018" (0.45mm)
Win Source Part Number 764397-416F26035ALR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 416F26035ALR CAD Model

Description

The CTS-Frequency Controls 764397-416F26035ALR is a 26MHz crystal oscillator that operates in a fundamental mode.

  • ESR: 200 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Package: 4-SMD, No Lead
  • Load Capacitance: 12pF
  • Operating Temperature Range: -10°C to 60°C
  • Series: 416
  • Applications: Crystals, Oscillators, and Resonators
  • Dimensions: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Maximum Seated Height: 0.018" (0.45mm)
