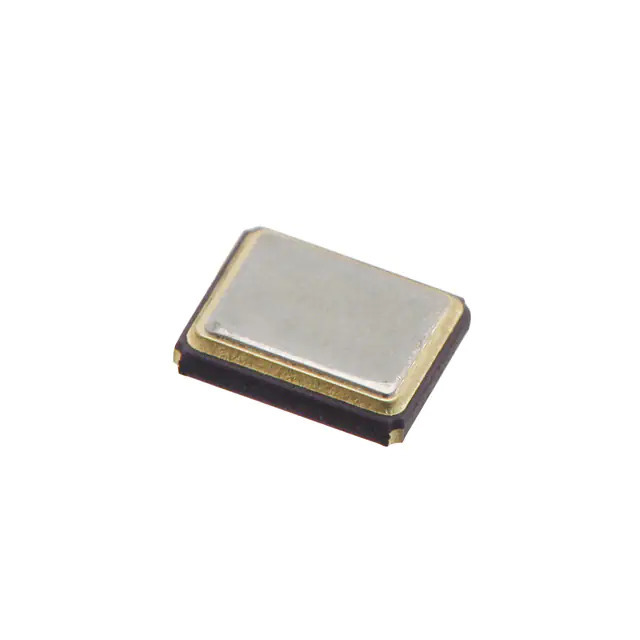

Same model may have multiple batches, images only for reference.
403C35D25M00000 CTS-Frequency Controls
Same model may have multiple batches, images only for reference.

403C35D25M00000

Part No 403C35D25M00000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF SMD / 25 MHz ±30ppm Crystal 18pF 60 Ohms 4-SMD, No Lead
Datasheet
403C35D25M00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series 403
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1355583-403C35D25M00000
Ultra Librarian 3D Model Ultra Librarian 403C35D25M00000 CAD Model

Description

The CTS-Frequency Controls 1355583-403C35D25M00000 is a 25 MHz crystal oscillator from CTS-Frequency Controls.

  • Frequency: 25 MHz
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Temperature Range: -20°C to 70°C
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Equivalent Series Resistance (ESR): 60 Ohms
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.031" (0.80mm)
  • Product Status: Active
  • REACH: Unaffected
