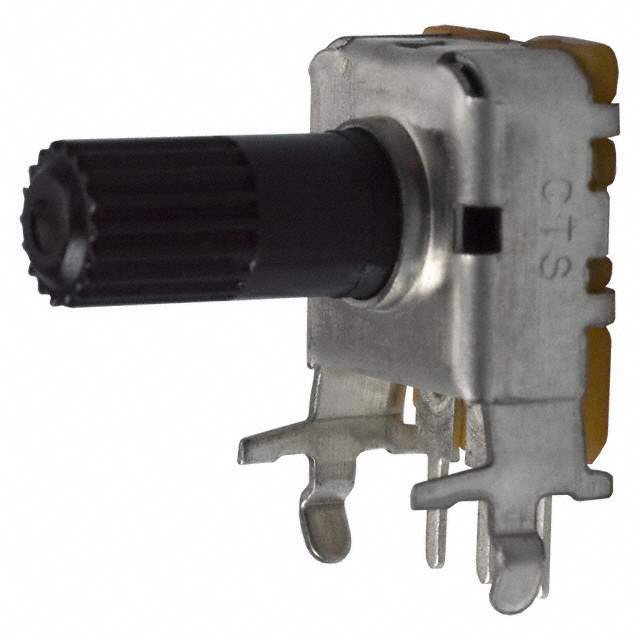

296XD503B1N Real Image
Same model may have multiple batches, images only for reference.

296XD503B1N

Part No 296XD503B1N
Manufacturer CTS Electrocomponents
Catalog Rotary Potentiometers, Rheostats
Description Commercial 12mm Diameter Carbon Composition Rotary Potentiometer | POT 50K OHM 0.15W CARBON LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer CTS Electrocomponents
Packaging Bulk
Status Obsolete
Resistance (Ohms) 50k
Tolerance ±20%
Power (W) 0.15W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type Side Adjustment
Rotation 300°
Resistive Material Carbon
Termination Style PC Pins, Board Locks
Actuator Type Knurled
Actuator Length 0.539" (13.70mm)
Actuator Diameter 0.236" (6.00mm)
Mounting Style Through Hole, Snap In
Size - Body Rectangular - 0.646" x 0.492" Face x 0.646" H (16.40mm x 12.50mm x 16.40mm)
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1123516-296XD503B1N
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 296XD503B1N CAD Model

Description

The CTS Electrocomponents electronic component with the Win Source Part Number 1123516-296XD503B1N is a potentiometer with a linear taper and a resistance of 50k ohms.

  • Shape: Rectangular
  • Face Size: 0.646 inches by 0.492 inches
  • Height: 0.646 inches
  • Mounting Style: Through hole and snap in
  • Termination Style: PC pins and board locks
