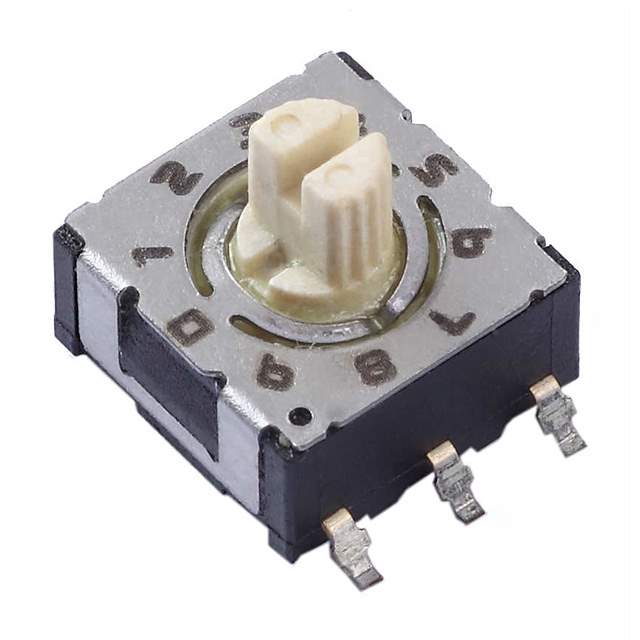

220AMB10R Real Image
Same model may have multiple batches, images only for reference.

220AMB10R

Part No 220AMB10R
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description Rotary DIP Switch | SWITCH ROTARY DIP BCD 100MA 50V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Packaging Reel
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.268" (6.80mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Length 0.283" (7.20mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123038-220AMB10R
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 220AMB10R CAD Model

Description

The CTS Electrocomponents 1123038-220AMB10R is a BCD rotary switch with a voltage rating of 50VDC and a current rating of 100mA.

  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Height Above Board: 0.268" (6.80mm)
  • Length: 0.283" (7.20mm)
  • Circuit: BCD
  • Actuator Type: Rotary with Shaft
  • Electrical Life: 10,000 steps
  • Mechanical Life: 10,000 steps
  • Actuator Level: Raised
  • Washable: No
  • Category: Switches
  • Temperature Range: -40°C to 85°C
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand: Limited
  • Package Contains: 1 Switch
