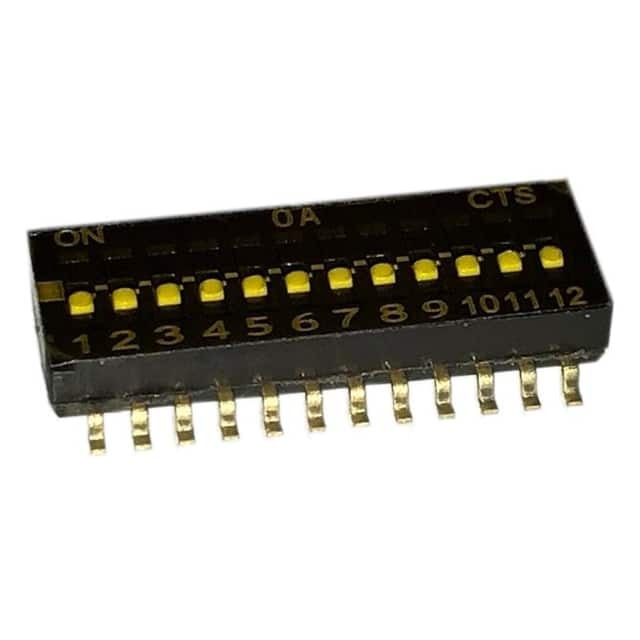

218-12LPSTF
Same model may have multiple batches, images only for reference.

218-12LPSTF

Part No 218-12LPSTF
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 12 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
218-12LPSTF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 218
Package Tube
Product Status Active
Circuit SPST
Number of Positions 12
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.646" (16.41mm)
Electrical Life 1,000 Cycles
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 905922-218-12LPSTF
Ultra Librarian 3D Model Ultra Librarian 218-12LPSTF CAD Model

Description

The 905922-218-12LPSTF is a DIP switch from the 218 series.

  • Number of Positions: 12
  • Pitch: 0.050" (1.27mm)
  • Termination Style: gull wing
  • Features: epoxy sealed terminals with tape seal
  • Contact Finish: gold
  • Package: tube
  • Quantity per Package: 30
  • Contact Material: beryllium copper
  • Voltage Rating: 24VDC
  • Height Above Board: 0.104" (2.65mm)
  • Length: 0.646" (16.41mm)
  • Circuit: SPST
  • Actuator Type: slide
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Operating Temperature Range: -55°C to 85°C
  • Manufacturer: CTS Electrocomponents
  • Product Status: active
