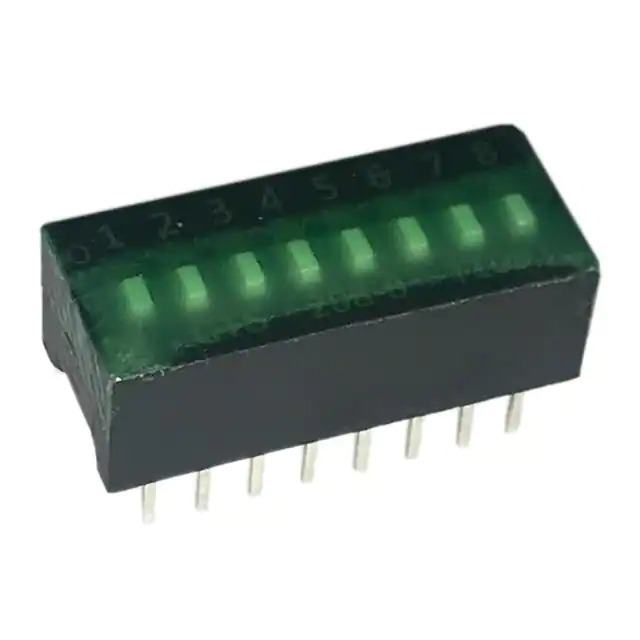

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 208
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material -
Contact Finish Tin
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376361-208-8ST
Ultra Librarian 3D Model Ultra Librarian 208-8ST CAD Model

Description

The CTS Electrocomponents 208-8ST is a DIP switch from.

  • Series: 208
  • Actuator Type: Slide
  • Number of Positions: 8
  • Current Rating: 50mA
  • Voltage Rating: 24VDC
  • Contact Finish: Tin
  • Mounting Type: Through Hole
  • Package: Tube
  • Height Above Board: 0.334" (8.48mm)
  • Length: 0.886" (22.50mm)
  • Washable: Yes
  • Mechanical Life: 2,000 Cycles
  • Terminals: Epoxy Sealed
  • Seal: Tape
