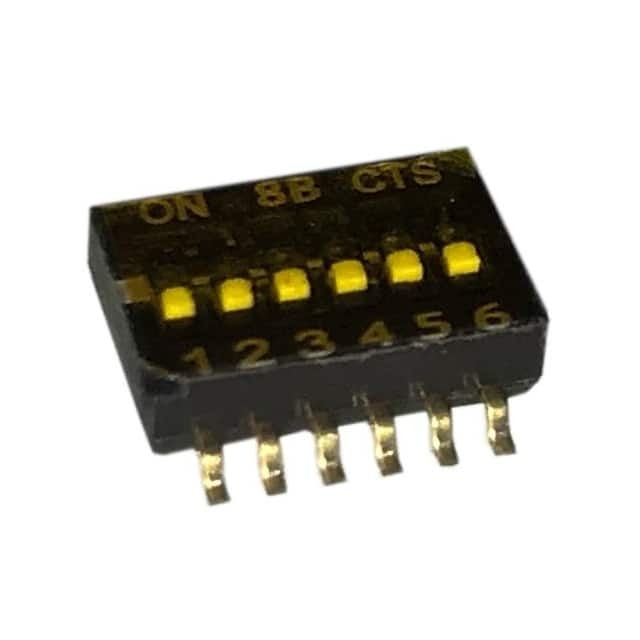

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 218
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.346" (8.79mm)
Electrical Life 1,000 Cycles
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 905925-218-6LPSTRF
Ultra Librarian 3D Model Ultra Librarian 218-6LPSTRF CAD Model

Description

The 218 DIP Switch by CTS Electrocomponents is a high-quality electronic component designed for use in DIP switches.

  • Number of Positions: 6
  • Pitch: 0.050" (1.27mm)
  • Termination Style: gull wing
  • Features: epoxy sealed terminals and a tape seal
  • Contact Finish: gold
  • Voltage Rating: 24VDC
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Temperature Range: -55°C to 85°C
