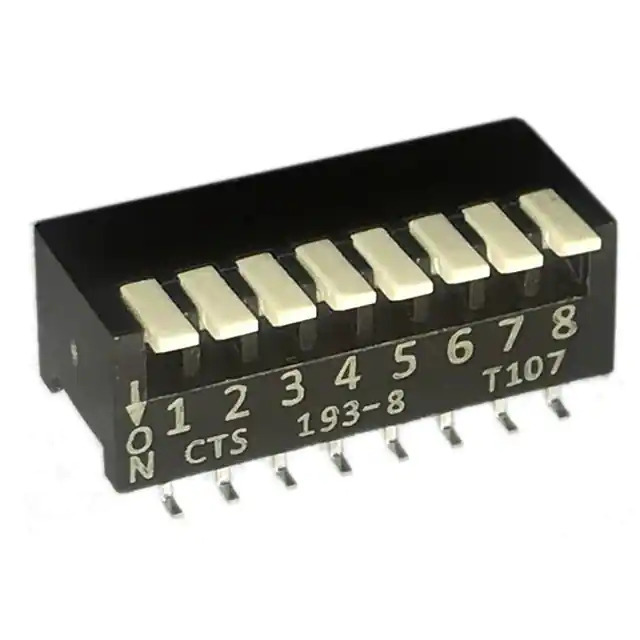

193-8MSR CTS Electrocomponents
Same model may have multiple batches, images only for reference.

193-8MSR

Part No 193-8MSR
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 50MA 24V
Datasheet
193-8MSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 193
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material -
Contact Finish Gold
Height Above Board 0.359" (9.12mm)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Mechanical Life -
Electrical Life 7,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376388-193-8MSR
Ultra Librarian 3D Model Ultra Librarian 193-8MSR CAD Model

Description

The CTS Electrocomponents 193 series DIP switch is a surface mount switch with a piano actuator.

  • Positions: 8
  • Current Rating: 50mA
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Circuit: SPST (single-pole single-throw)
  • Termination Style: Gull wing
  • Mounting: Surface, right angle
  • Height Above Board: 0.359" (9.12mm)
  • Length: 0.886" (22.50mm)
  • Washable: No
  • Material: Plastic
  • Manufacturer: CTS Electrocomponents
  • Series: 193
