Same model may have multiple batches, images only for reference.

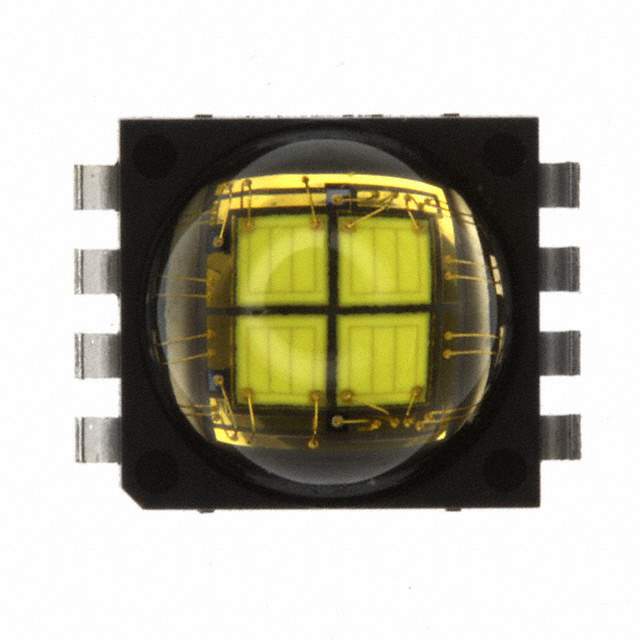

MCE4WT-A2-0000-000HE7 Real Image
Same model may have multiple batches, images only for reference.

MCE4WT-A2-0000-000HE7

Part No MCE4WT-A2-0000-000HE7
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3000K 8SMD / LED Lighting series White, Warm 3000K 3.1V 4 x 350mA 110° 8-SMD, Gull Wing Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® MC-E
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 300lm (280lm ~ 320lm)
Current - Test 4 x 350mA
Voltage - Forward (Vf) (Typ) 3.1V
Lumens/Watt @ Current - Test 69 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 4 x 700mA
Viewing Angle 110°
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing Exposed Pad
Dimension 0.276" L x 0.295" W (7.00mm x 7.50mm)
Height - Seated (Max) 0.181" (4.60mm)
Thermal Resistance of Package 3°C/W
Base Product Number MCE4WT
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names MCE4WTA20000000HE7,MCE4WT-A2-0000-000HE7-ND,MCE4WT-A2-0000-000HE7TR,MCE4WT-A2-0000-000HE7DKR,MCE4WT-A2-0000-000HE7CT
Standard Package 200
Win Source Part Number 1006816-MCE4WT-A2-0000-000HE7
Ultra Librarian 3D Model Ultra Librarian MCE4WT-A2-0000-000HE7 CAD Model

Description

The CreeLED, Inc. MCE4WT-A2-0000-000HE7 is a white and warm LED lighting component. It is part of the XLamp® MC-E series and comes in a Tape & Reel package.

  • Series: XLamp® MC-E
  • Package: Tape & Reel
  • Height - Seated (Max): 0.181" (4.60mm)
  • Viewing Angle: 110°
  • Current - Max: 4 x 700mA
  • Voltage - Forward (Vf) (Typ): 3.1V
  • CCT (K): 3000K
  • CRI (Color Rendering Index): 80 (Typ)
  • Mounting Type: SMD (SMT)
  • Thermal Resistance of Package: 3°C/W
  • Use in: Optoelectronics such as LED Lighting - White
