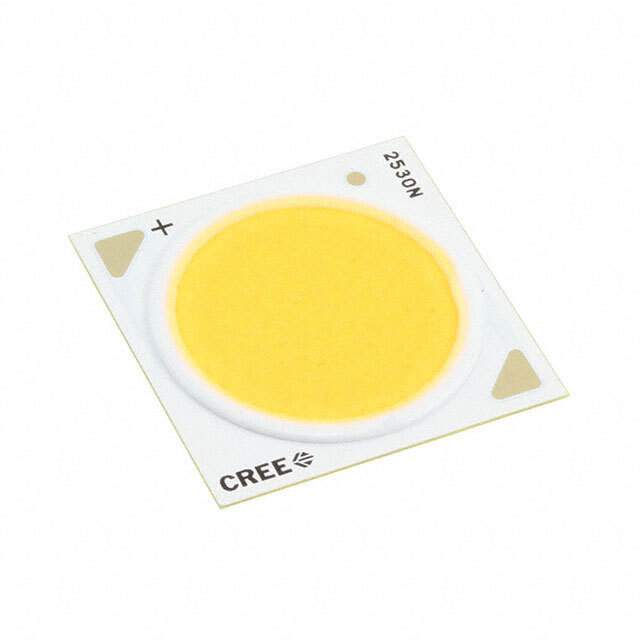

CXB2530-0000-000N0ZS235H Real Image
Same model may have multiple batches, images only for reference.

CXB2530-0000-000N0ZS235H

Part No CXB2530-0000-000N0ZS235H
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXB2530 WARM WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXB2530-0000-000N0ZS235H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series Xlamp® CXB2530
Package Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 2885lm (2780lm ~ 2990lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 35V
Lumens/Watt @ Current - Test 103 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 95
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Dia
Lens Type Flat
Base Product Number CXB2530
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1106368-CXB2530-0000-000N0ZS235H
Ultra Librarian 3D Model Ultra Librarian CXB2530-0000-000N0ZS235H CAD Model

Description

The Xlamp® CXB2530 is a chip on board (COB) LED lighting module that is available in white and warm colors.

  • Maximum Current: 1.6A
  • Forward Voltage (Vf): 35V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color Rendering Index (CRI): 95
  • Correlated Color Temperature (CCT): 3500K
  • Lumens per Watt (lm/W) @ Test Current: 103
  • Light Emitting Surface (LES): 19.00mm diameter
  • Application: LED lighting, COBs, engines, modules, and strips
  • Configuration: Square
  • Package: Tray
  • Standard Package: 100
