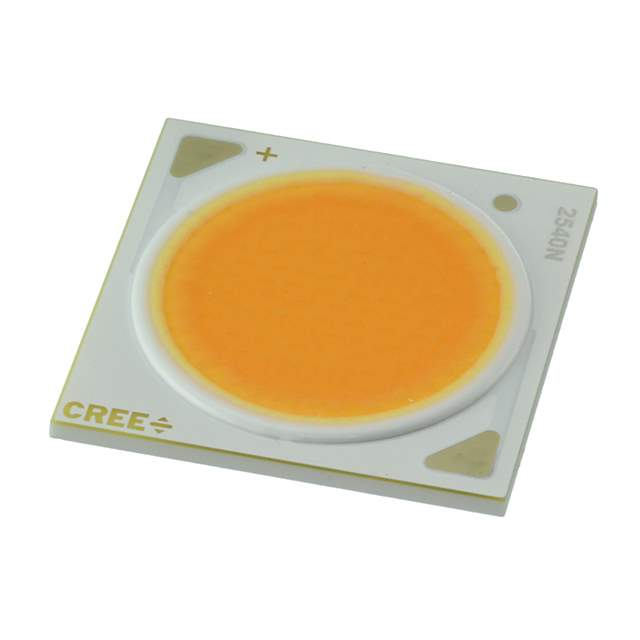

CXA2540-0000-000N0HV250H Real Image
Same model may have multiple batches, images only for reference.

CXA2540-0000-000N0HV250H

Part No CXA2540-0000-000N0HV250H
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED HB XLAMP CXA2540 / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Datasheet
CXA2540-0000-000N0HV250H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA2540
Package Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 4388lm (4230lm ~ 4545lm)
Current - Test 1.1A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 108 lm/W
Current - Max 2.1A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Dia
Lens Type Flat
Base Product Number CXA2540
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1212779-CXA2540-0000-000N0HV250H
Ultra Librarian 3D Model Ultra Librarian CXA2540-0000-000N0HV250H CAD Model

Description

The XLamp® CXA2540 LED lighting component from CreeLED, Inc. is a high-performance chip on board (COB) IC that is ideal for use in a variety of lighting applications.

  • Configuration: Square
  • Viewing Angle: 115°
  • Description: Provides bright and efficient lighting in a compact and durable package.
