Same model may have multiple batches, images only for reference.

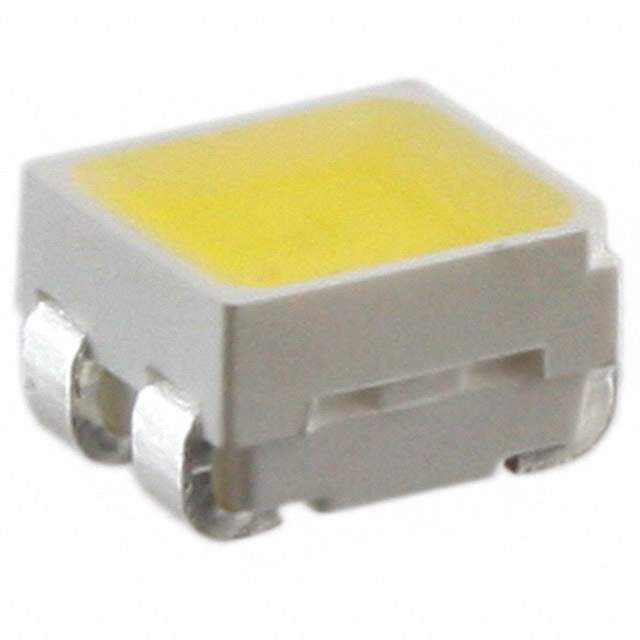

CLA1B-MKW-XD0F0E73 Real Image
Same model may have multiple batches, images only for reference.

CLA1B-MKW-XD0F0E73

Part No CLA1B-MKW-XD0F0E73
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED CLA1B WARM WHT 80CRI 4LCC / LED Lighting series White, Warm 3.2V 30mA 120° 4-PLCC
Datasheet
CLA1B-MKW-XD0F0E73 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series CLA1B-WKW/MKW
Package Tape & Reel
Color White, Warm
Flux @ 25°C, Current - Test 10lm (6lm ~ 14lm)
Current - Test 30mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 39 lm/W
CRI (Color Rendering Index) 80
Current - Max 80mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 120°C/W
Base Product Number CLA1B
MSL Level 5A (24 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names CLA1B-MKW-XD0F0E73CT,CLA1B-MKW-XD0F0E73TR,CLA1BMKWXD0F0E73,CLA1B-MKW-XD0F0E73DKR
Standard Package 2,000
Win Source Part Number 1052327-CLA1B-MKW-XD0F0E73
Ultra Librarian 3D Model Ultra Librarian CLA1B-MKW-XD0F0E73 CAD Model

Description

The CreeLED, Inc. CLA1B-MKW-XD0F0E73 electronic component is manufactured by CreeLED, Inc. and is available at Win Source.

  • Category: Optoelectronics
  • Series: CLA1B-WKW/MKW
  • Color: White and warm
  • Package: Tape & Reel
  • Height: 0.083" (2.10mm)
  • Standard Package: 2,000 units
  • Mounting: SMD (SMT)
  • Maximum Current: 80mA
  • Viewing Angle: 120°
  • Voltage Forward (Vf) (Typ): 3.2V
  • Current Test: 30mA
  • Flux @ 25°C, Current - Test: 10lm (6lm ~ 14lm)
  • Lumens/Watt @ Current - Test: 39 lm/W
  • Color Rendering Index: 80
  • Thermal Resistance: 120°C/W
  • Dimensions: 0.126" L x 0.110" W (3.20mm x 2.80mm)
  • Alternative Parts (cross-reference): CLA1B-WKW-XD0F0513, CLA1B-WKW-XD0F0E33, and CLA1B-WKW-XD0F0E13
  • MSL Level: 5A (24 hours)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
