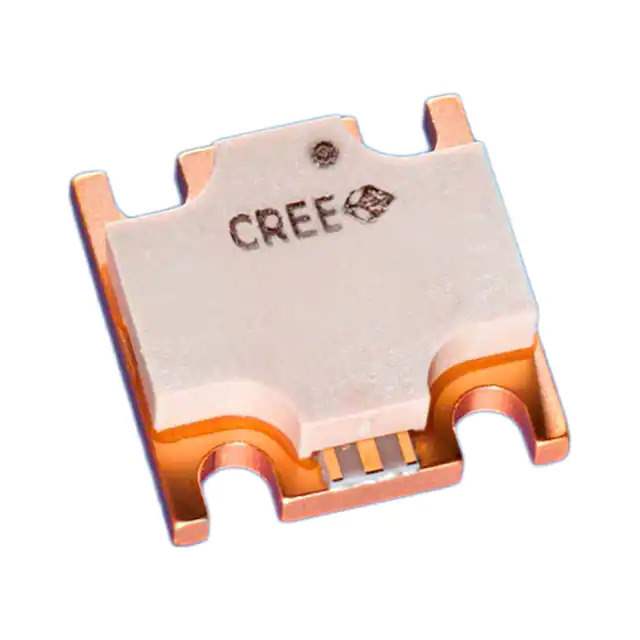

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Cree/Wolfspeed
Series GaN
Package Tray
Product Status Active
Frequency 2.5GHz ~ 6GHz
Gain 24dB
Voltage - Supply 6V ~ 28V
Current - Supply 20mA ~ 10A
Test Frequency 2.5GHz ~ 6GHz
Mounting Type Flange Mount
Package / Case 780019
Supplier Device Package 780019
Base Product Number CMPA2560025
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN DISC 3A001B3
HTSUS 8541.29.0075
Win Source Part Number 579668-CMPA2560025F
Ultra Librarian 3D Model Ultra Librarian CMPA2560025F CAD Model

Description

The GaN RF Amplifier by Cree/Wolfspeed is a high-quality electronic component designed for RF and wireless applications.

  • Test Frequency Range: 2.5GHz to 6GHz
  • Gain: 24dB
  • Current Supply Range: 20mA to 10A
  • Voltage Supply Range: 6V to 28V
  • Installation: Flange mount
