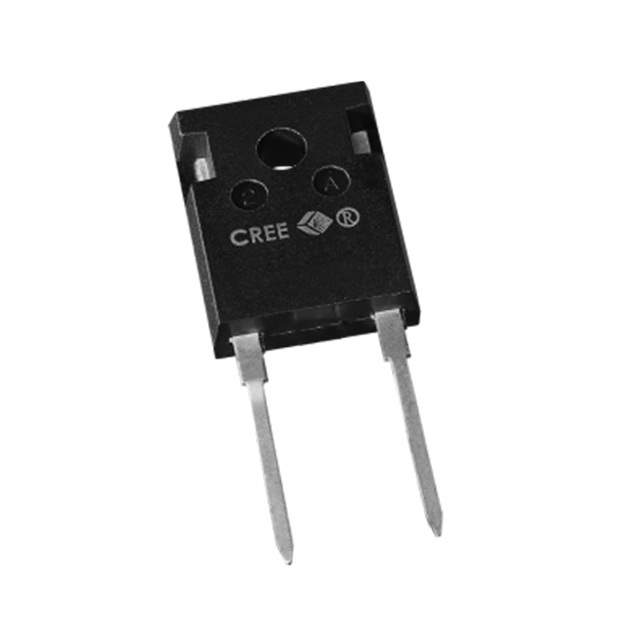

Part No C4D15120H
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description ZRECTM 15A 1200V SIC SCHOTTKY DI / Diode Silicon Carbide Schottky 1200 V 39A (DC) Through Hole TO-247-2
Datasheet
C4D15120H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Wolfspeed, Inc.
Series Z-Rec®
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 39A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 15 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1200 V
Capacitance @ Vr, F 1.2nF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C4D15120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30
Win Source Part Number 1013801-C4D15120H
Ultra Librarian 3D Model Ultra Librarian C4D15120H CAD Model

Description

The C4D15120H is a silicon carbide Schottky diode designed for high power applications.

  • Maximum Reverse Voltage: 1200 V
  • Forward Voltage: 1.8 V @ 15 A
  • Current Rating: 39 A
  • Package: TO-247-2
  • Operating Temperature Range: -55°C to 175°C
  • Capacitance: 1.2nF @ 0V and 1MHz
  • Reverse Leakage Current: 200 µA @ 1200 V
