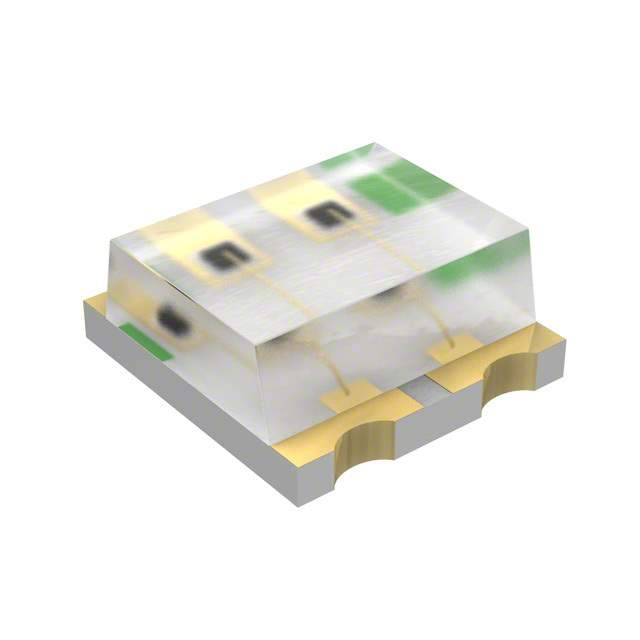

HSMF-C114 Real Image
Same model may have multiple batches, images only for reference.

HSMF-C114

Part No HSMF-C114
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 0606 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 85mcd Red, 180mcd Green, 70mcd Blue
Lens Style/Size Rectangle with Flat Top, 1.10mm x 1.50mm
Forward Voltage 1.9V Red, 3.4V Green, 3.4V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 140° Red, 145° Green, 145° Blue
Mounting SMD (SMT)
Wavelength - Dominant 626nm Red, 525nm Green, 470nm Blue
Wavelength - Peak 637nm Red, 523nm Green, 468nm Blue
Case / Package Chip LED
Height (Max) 0.35mm
Win Source Part Number 1044003-HSMF-C114
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HSMF-C114
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMF-C114 CAD Model

Description

The Broadcom Limited 1044003-HSMF-C114 is a chip LED reference case component that is suitable for various electronic applications.

  • Supply and Demand Status: Balanced
  • Manufacturer: Broadcom Limited
  • Win Source Part Number: 1044003-HSMF-C114
  • Packaging: Reel - TR
  • Color: Red, Green, and Blue (RGB)
