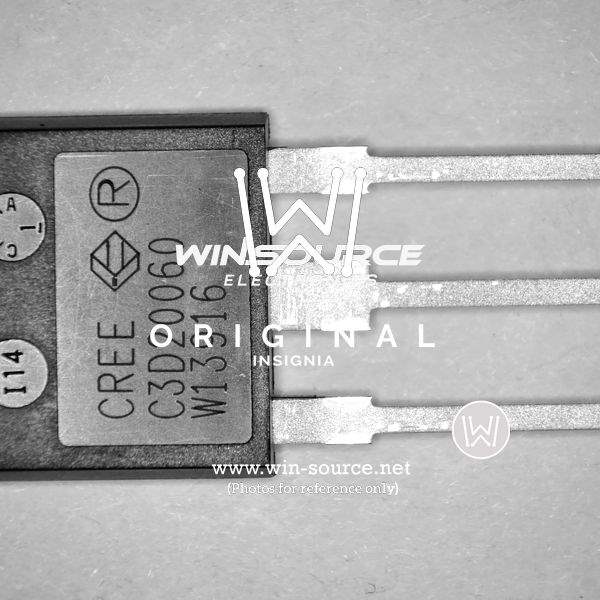

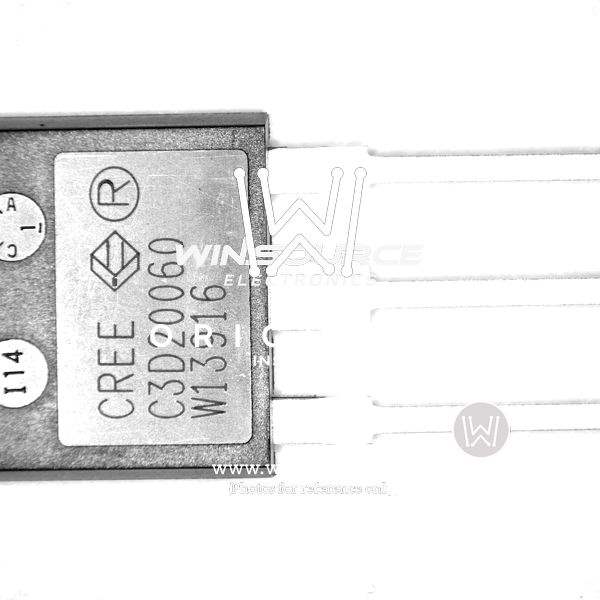

C3D20060D Real Image C3D20060D real image15241 C3D20060D Real Image1 C3D20060D Real Image2
Same model may have multiple batches, images only for reference.
C3D20060D Real Image C3D20060D real image15241 C3D20060D Real Image1 C3D20060D Real Image2
C3D20060D Real Image C3D20060D real image15241 C3D20060D Real Image1 C3D20060D Real Image2
Same model may have multiple batches, images only for reference.

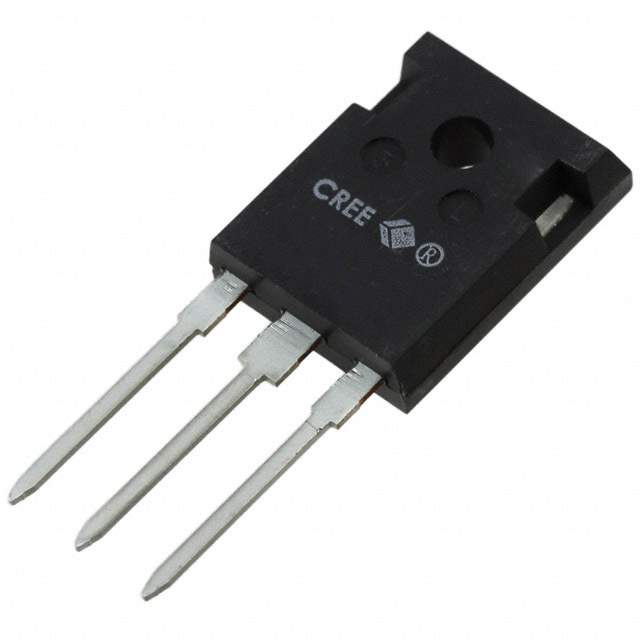

C3D20060D

Part No C3D20060D
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 600V TO247
Datasheet
C3D20060D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 10A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247-3
Win Source Part Number 1027294-C3D20060D
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian C3D20060D CAD Model

Description

The C3D20060D is a silicon carbide Schottky diode manufactured by Cree/Wolfspeed. This component is designed for use in high-power applications and has a maximum reverse voltage rating of 600V.

  • Forward Voltage: 1.8V @ 10A
  • Package: TO-247-3
  • Mounting Style: Through-Hole
  • Manufacturer: Cree/Wolfspeed
  • Failure Rate: Less than 1%
