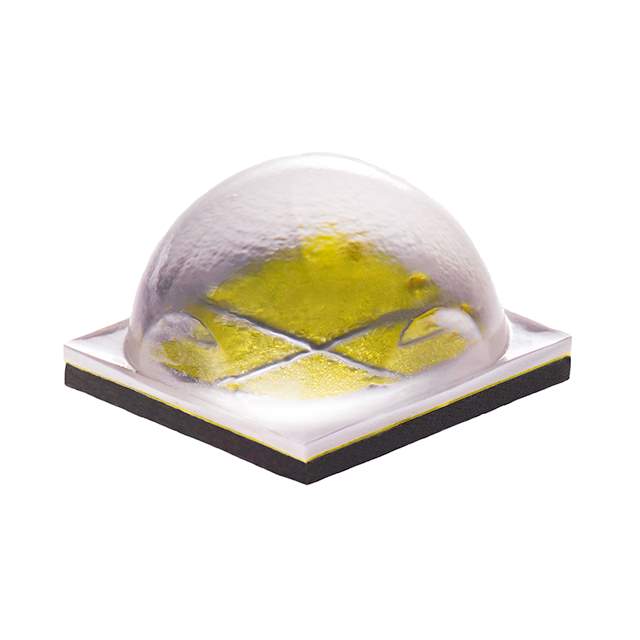

XHP70A-00-0000-0D00N20E3 Real Image
Same model may have multiple batches, images only for reference.

XHP70A-00-0000-0D00N20E3

Part No XHP70A-00-0000-0D00N20E3
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description XLamp XHP70 LEDs
Datasheet
XHP70A-00-0000-0D00N20E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp XHP70
Packaging Reel - TR
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 1650 lm (1590 lm ~ 1710 lm)
Current - Test 1.05A
Voltage - Forward (Vf) (Typ) 12V
Lumens/Watt @ Current - Test 131 lm/W
Current - Max 2.4A
Viewing Angle 120°
Mounting SMD
Package 2828 (7070 Metric)
Manufacturer Package SMD
Size 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Maximum) 0.182" (4.62mm)
Thermal Resistance of Package 0.9°C/W
Win Source Part Number 1282114-XHP70A-00-0000-0D00N20E3
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name XHP70A-00-0000-0D00N20E3
Introduction Date December 17, 2014
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian XHP70A-00-0000-0D00N20E3 CAD Model

Description

The Cree Inc. XHP70A-00-0000-0D00N20E3 is a high-power LED component that is part of the XLamp XHP70 series.

  • Configuration: Square
  • Package Size: 2828 (7070 metric)
  • Mounting Technology: SMT
  • Maximum Current: 2.4A
  • Viewing Angle: 120 degrees
  • Forward Voltage: 12V
  • Flux: 1650 lm @ 1.05A
  • Lumens-to-Watt Ratio: 131 lm/W @ 1.05A
  • Thermal Resistance: 0.9 degrees Celsius per watt
  • Packaging: Reel
  • Introduction Date: December 17, 2014
