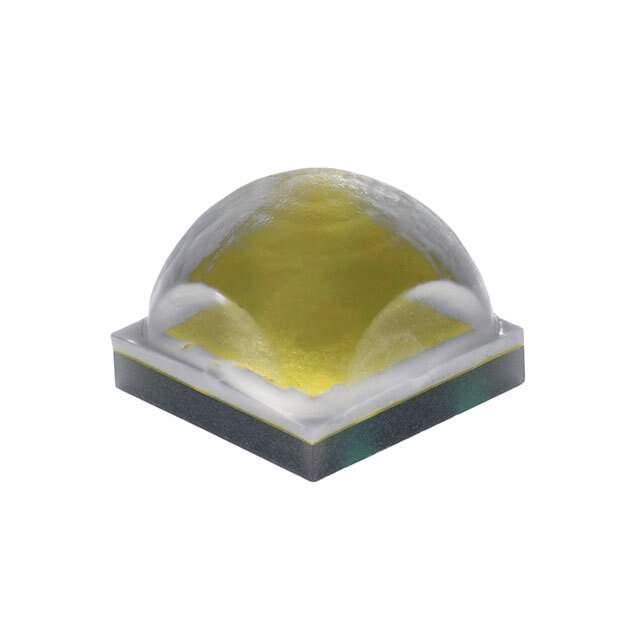

XHP35A-00-0000-0D0BD230E Real Image
Same model may have multiple batches, images only for reference.

XHP35A-00-0000-0D0BD230E

Part No XHP35A-00-0000-0D0BD230E
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP XHP35 WARM WHT 3000K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Active
Color White, Warm
CCT (K) 3000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 530 lm (510 lm to 550 lm)
Current - Test 350mA
Forward Voltage 11.3V
Lumens/Watt @ Current - Test 134 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.05A
Viewing Angle 125°
Mounting SMD (SMT)
Height - Seated (Max) 0.115" (2.93mm)
Thermal Resistance of Package 1.8°C/W
Win Source Part Number 120021-XHP35A-00-0000-0D0BD230E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XHP35A-00-0000-0D0BD230E CAD Model

Description

The Cree Inc. XHP35A-00-0000-0D0BD230E is a white, warm LED with a maximum current rating of 1.05A and a forward voltage of 11.3V.

  • LED Color: White, Warm
  • Maximum Current Rating: 1.05A
  • Forward Voltage: 11.3V
  • Viewing Angle: 125°
  • CCT: 3000K 5-Step MacAdam Ellipse
  • Flux: 530 lm (510 lm to 550 lm) @ 85°C
  • Current Test: 350mA
  • Lumens/Watt: 134 lm/W
  • CRI: 70
  • Package Type: Surface Mount
  • Thermal Resistance: 1.8°C/W
