Same model may have multiple batches, images only for reference.

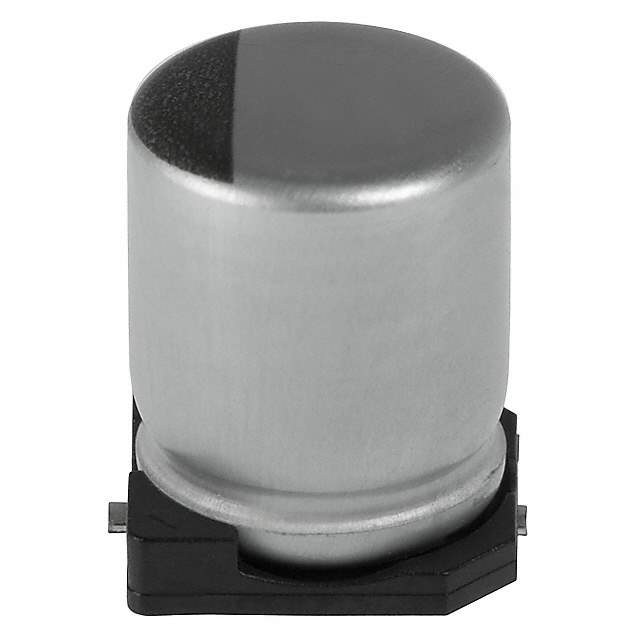

EMZA500ADA101MHA0G Real Image
Same model may have multiple batches, images only for reference.

EMZA500ADA101MHA0G

Part No EMZA500ADA101MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Impedance 340 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2569-1,565-2569-2,565-2569-6
Standard Package 500
Win Source Part Number 1003118-EMZA500ADA101MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZA500ADA101MHA0G CAD Model

Description

The Alchip™- MZA series capacitor with Win Source Part Number 1003118-EMZA500ADA101MHA0G is an aluminum electrolytic capacitor that has a capacitance of 100 µF and a voltage rating of 50 V.

  • Series: Alchip™- MZA
  • Win Source Part Number: 1003118-EMZA500ADA101MHA0G
  • Capacitor Type: Aluminum Electrolytic
  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Application: Automotive
  • Package: Radial, can - SMD
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Polarity: Polarized
