Same model may have multiple batches, images only for reference.

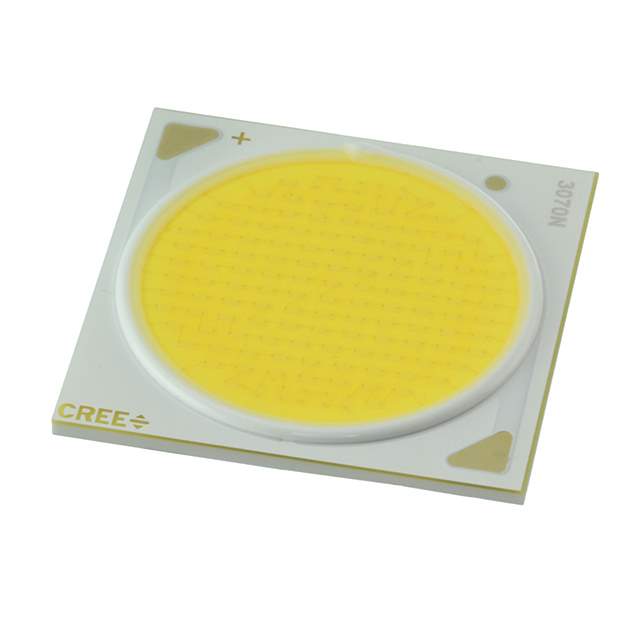

CXA3070-0000-000N00AD0E3 Real Image
Same model may have multiple batches, images only for reference.

CXA3070-0000-000N00AD0E3

Part No CXA3070-0000-000N00AD0E3
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED array expands Crees family of high flux, multi die integrated arrays
Datasheet
CXA3070-0000-000N00AD0E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA3070
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K
Configuration Square
Flux @ Current/Temperature - Test 9250 lm (9000 lm ~ 9500 lm)
Current - Test 1.925A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 38.5V
Lumens/Watt @ Current - Test 125 lm/W
Current - Max 2.8A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Size 27.35mm L x 27.35mm W
Height 1.70mm
Light Emitting Surface (LES) 23.00mm Diameter
Lens Type Flat
Win Source Part Number 1163805-CXA3070-0000-000N00AD0E3
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA3070
Introduction Date September 23, 2013
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CXA3070-0000-000N00AD0E3 CAD Model

Description

The XLamp CXA3070 is a chip on board (COB) type electronic component with a square configuration and a flat lens type manufactured by Cree.

  • Configuration: Square
  • Lens Type: Flat
  • Light Color: Cool White
  • CCT: 5000K
  • CRI: 70
  • Viewing Angle: 115 degrees
  • Voltage Forward: 38.5V
  • Maximum Current: 2.8A
  • LES Diameter: 23.00mm
  • Flux @ Current/Temperature-Test: 9250 lm (9000 lm ~ 9500 lm) @ 85 degrees Celsius
  • Application: Optoelectronics
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete
