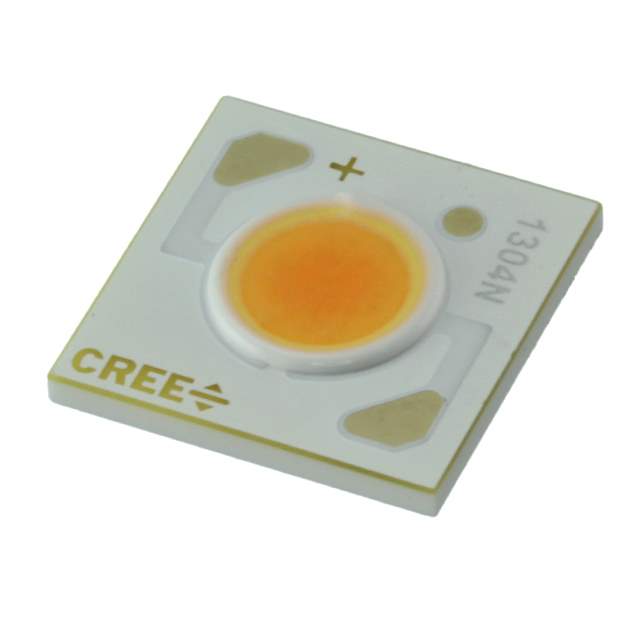

CXA1304-0000-000C00B430H Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000C00B430H

Part No CXA1304-0000-000C00B430H
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXA1304-0000-000C00B430H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1304
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 2-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 425 lm (410 lm ~ 440 lm)
Current - Test 400mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 9V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Diameter
Lens Type Flat
Win Source Part Number 1163752-CXA1304-0000-000C00B430H
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1304
Introduction Date January 22, 2014
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000C00B430H CAD Model

Description

The Cree Inc. XLamp CXA1304 is a chip on board (COB) LED with a square configuration and a white, warm color.

  • Type: Chip on Board (COB) LED
  • Configuration: Square
  • Color: White, Warm
  • Maximum Current: 1A
  • Forward Voltage (Typical): 9V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color Temperature: 3000K
  • CCT MacAdam Ellipse: 2-Step
  • Color Rendering Index (CRI): 80
  • Luminous Efficacy: 118 lm/W @ 400mA
  • Flux: 425 lm @ 400mA
  • Light Emitting Surface (LES) Diameter: 6.00mm
  • Height: 1.70mm
  • Series: CXA1304
  • Packaging: Tray
  • Estimated End-of-Life (EOL): 2025
