Same model may have multiple batches, images only for reference.

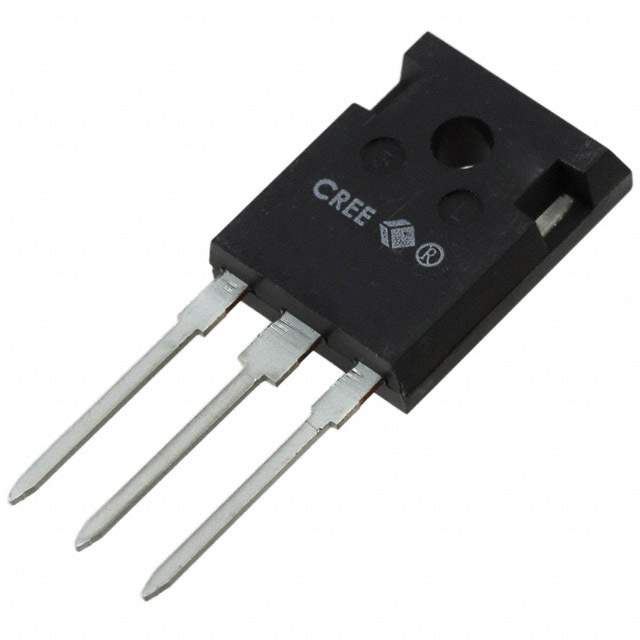

C2D20120D Real Image
Same model may have multiple batches, images only for reference.

C2D20120D

Part No C2D20120D
Manufacturer Cree Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 1200V TO247
Datasheet
C2D20120D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer Cree Inc.
Series Zero Recovery?
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) (per Diode) 22A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 10A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 1200V
Mounting Style Through Hole, Radial
Package TO-247-3
Manufacturer Device Package TO-247-3
Win Source Part Number 202052-C2D20120D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C2D20120D CAD Model

Description

Product Description

The C2D20120D is a high-capacity Silicon Carbide Schottky Diode that offers outstanding efficiency and speed. Its design significantly improves power conversion performance in various applications.

Applications

  • Smart Grid Systems
  • Wind Energy Converters
  • Power Amplifiers
  • Industrial Power Supplies

Features and Benefits

  • High Capacity: Suitable for high-power applications.
  • Fast Recovery: Competes with mainstream options in switching speed.
  • High Efficiency: Reduces thermal issues and energy wastage.

Optimized for both stability and performance, the C2D20120D is an ideal choice for renewable energy and high-power systems.
