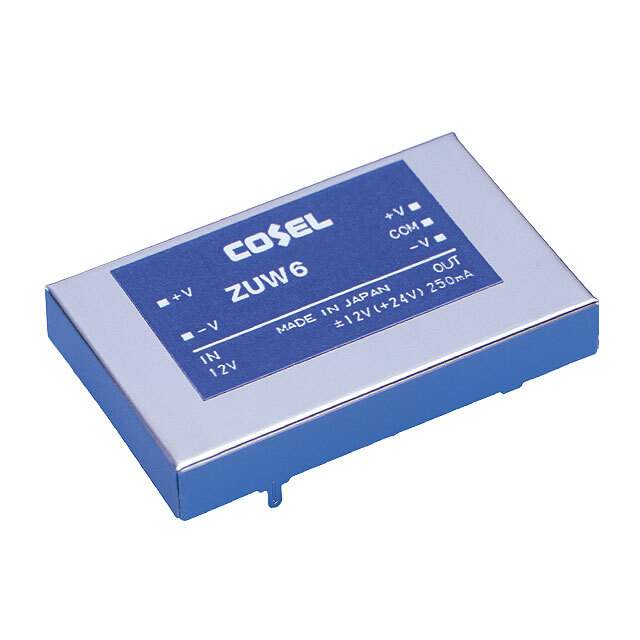

Same model may have multiple batches, images only for reference.

ZUW61212

Name: ZUW61212
Brand: Cosel USA, Inc.
SKU: 1027066
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW61212
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (6W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	77%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1923
Standard Package	1
Win Source Part Number	1027066-ZUW61212
Ultra Librarian 3D Model	Ultra Librarian ZUW61212 CAD Model

Alternative Products

Description

The Cosel USA, Inc. ZUW61212 is a power supply board mount DC DC converter that belongs to the ZUW (6W) series. This isolated module has a standard package of 1 and offers a voltage isolation of 500 V. The number of outputs is 2, and the maximum output current is 250mA for each output. The input voltage ranges from 9V to 18V, while the output voltage is 12V and -12V respectively. The product has an efficiency of 77% and has a through-hole mounting type. The product is in the Last Time Buy status.
