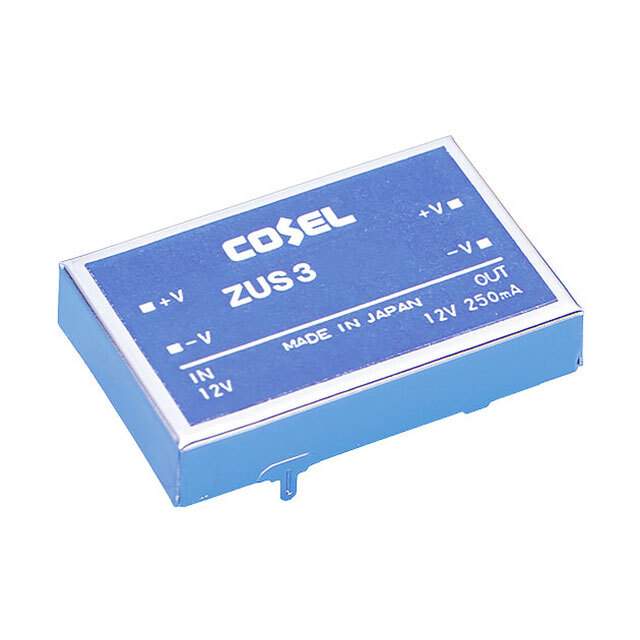

ZUS32405

Part No ZUS32405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Module DC-DC 24VIN 1-OUT 5V 0.6A 3W 4-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUS
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 5V
Current - Output (Maximum) 600mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 71%
Mounting Style Through Hole
Package 4-DIP Module
Dimension 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
Win Source Part Number 800423-ZUS32405
Popularity Medium
Supply and Demand Status Limited
Family Name ZUS32405
Introduction Date August 22, 2005
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUS32405 CAD Model

Description

The Cosel USA ZUS32405 is an isolated module with a through hole mounting style.

  • Mounting Type: Through Hole
  • Applications: ITE (Commercial)
  • Isolation Voltage: 500V
  • Output Voltage: 5V
  • Efficiency: 71%
  • Package: 4-DIP
  • Operating Temperature Range: -20°C to 71°C (with derating)
  • Features: OCP
  • Dimensions: 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
  • Input Voltage Range: 18V to 36V
  • Maximum Output Current: 600mA
  • Introduction Date: August 22, 2005
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
