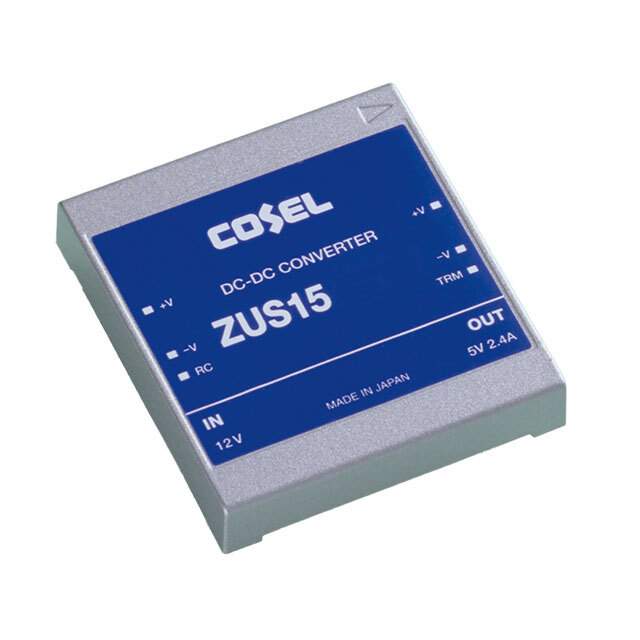

Same model may have multiple batches, images only for reference.

ZUS151205

Get a Quote

Part No	ZUS151205
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 2.4A 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUS (15W)
Package	Box
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	2.4A
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1830
Standard Package	1
Win Source Part Number	1023712-ZUS151205
Ultra Librarian 3D Model	Ultra Librarian ZUS151205 CAD Model

Alternative Products

Description

This electronic component is a power supply board mount DC DC converter manufactured by Cosel USA, Inc.

Series: ZUS (15W)
Type: Isolated module
Features: Remote On/Off, OCP, OVP
Package: Box
Application: ITE (Commercial)
Standard Package: 1
Voltage Isolation: 500V
Outputs: One output
Maximum Current Output: 2.4A
Input Voltage: 9V to 18V
Output Voltage: 5V
Efficiency: 80%
Mounting Type: Through-hole
Package/Case: 6-DIP module
Temperature Range: -20°C to 71°C (With Derating)
Dimension: 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
ECCN: EAR99
Status: Obsolete
Other Names: 1776-1830
