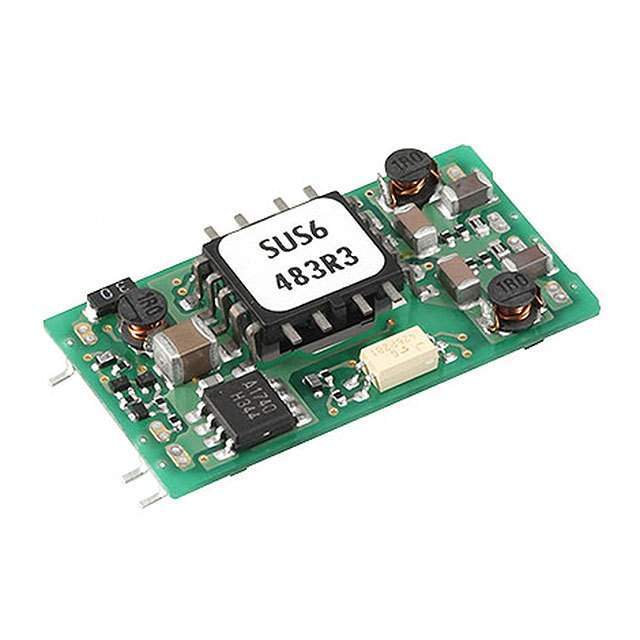

SUS6053R3B Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

SUS6053R3B

Part No SUS6053R3B
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 4W / Isolated Module DC DC Converter 1 Output 3.3V 1.2A 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUS (6W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 3.3V
Current - Output (Max) 1.2A
Power (Watts) 4 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 72%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 1.24" L x 0.71" W x 0.26" H (31.6mm x 18.1mm x 6.5mm)
Base Product Number SUS6053
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 795845-SUS6053R3B
Ultra Librarian 3D Model Ultra Librarian SUS6053R3B CAD Model

Description

The SUS6053R3B is a 6W isolated module DC-DC converter from the SUS series by Cosel USA, Inc.

  • Applications: Board mount
  • Size: 1.24" L x 0.71" W x 0.26" H
  • Output Voltage: 3.3V
  • Maximum Output Current: 1.2A
  • Input Voltage Range: 4.5V to 9V
  • Efficiency: 72%
  • Applications: ITE (Commercial)
  • Package: Box
  • Voltage Isolation: 500V
  • Mounting: Surface mount
  • Operating Temperature: -40°C to 85°C
