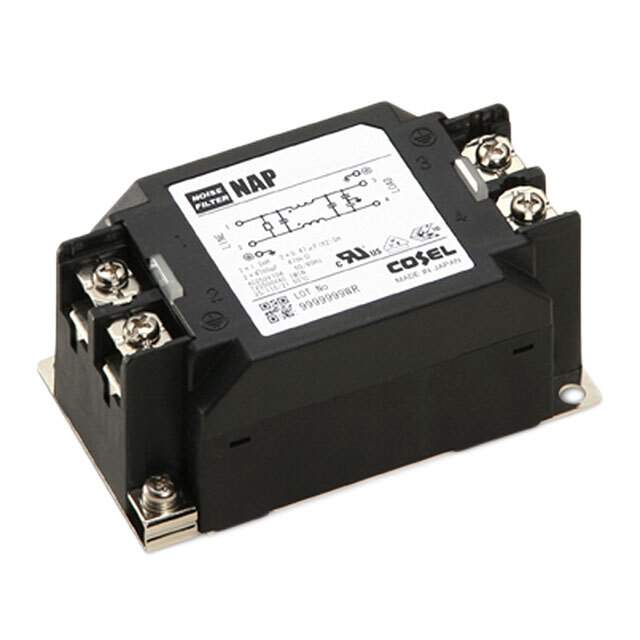

NAP-20-102 Real Image
Same model may have multiple batches, images only for reference.

NAP-20-102

Part No NAP-20-102
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 20A CHAS  /  Single Phase EMC/EMI Line Filter 20 A 250VAC Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series NAP
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Current 20 A
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Base Product Number NAP-20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Other Names NAP-20-102-ND,1776-3356
Standard Package 1
Win Source Part Number 1045300-NAP-20-102
Ultra Librarian 3D Model Ultra Librarian NAP-20-102 CAD Model

Description

The NAP-20-102 is a power line filter module from Cosel USA, Inc.

  • Filter Type: Single-stage, single-phase
  • Current Rating: 20A
  • Package: Box
  • Termination Style: Terminal block
  • Voltage Rating: 250VDC and 250VAC (phase to ground/neutral)
  • Mounting Type: Chassis mount
  • Suitable for: General-purpose applications
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: Not provided
  • HTSUS: 8548.00.0000
  • Cross-Reference: Alternative parts (not provided)
  • Approval Agency: cURus and VDE
