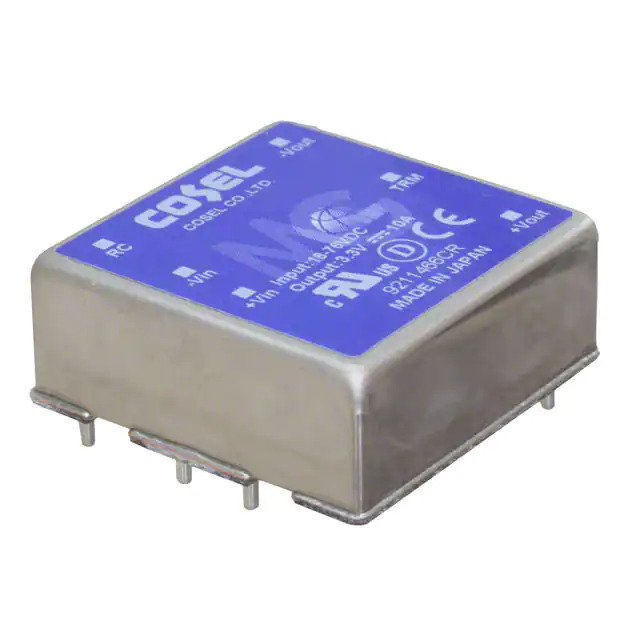

Same model may have multiple batches, images only for reference.
MGFW402415 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGFW402415

Part No MGFW402415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 42W / Isolated Module DC DC Converter 2 Output 15V or 30V -15V 1.4A, 1.4A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFW (40W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V or 30V
Voltage - Output 2 -15V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.4A, 1.4A
Power (Watts) 42 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Bridgeable
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package -
Control Features -
Approval Agency CE, cURus, DEMKO
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355437-MGFW402415
Ultra Librarian 3D Model Ultra Librarian MGFW402415 CAD Model

Description

The Cosel USA MGFW series isolated module DC-DC converters are high-quality power supplies designed for board mount applications.

  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 15V or 30V
  • Voltage - Output 2: -15V
  • Series: MGFW
  • Applications: ITE (Commercial)
  • Features: Isolated, Bridgeable
  • Package / Case: 6-DIP Module
  • Voltage - Isolation: 1.5 kV
