Same model may have multiple batches, images only for reference.

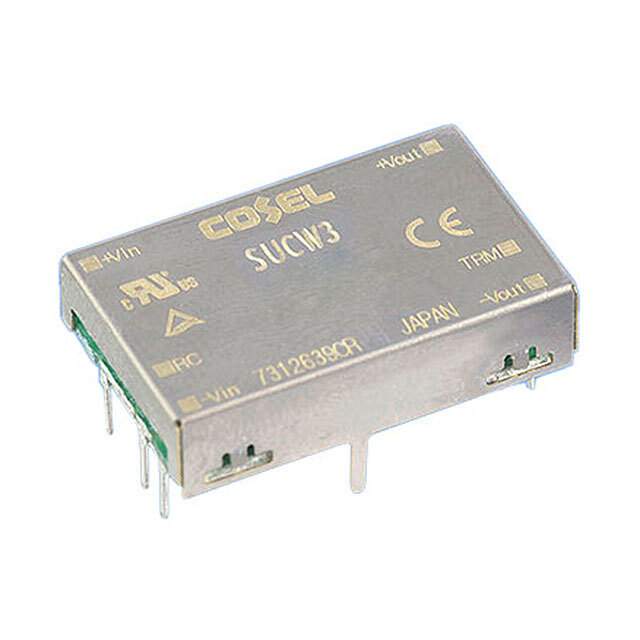

SUCW30515C Real Image
Same model may have multiple batches, images only for reference.

SUCW30515C

Part No SUCW30515C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUCW (3W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 74%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
Base Product Number SUCW30515
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339986-SUCW30515C
Ultra Librarian 3D Model Ultra Librarian SUCW30515C CAD Model

Description

The SUCW30515C is an isolated module power supply board mount DC DC converter manufactured by Cosel USA, Inc.

  • Series: SUCW (3W)
  • Feature: Remote On/Off, OCP
  • Package: Tray
  • Size / Dimension: 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
  • Application: Commercial ITE
  • Win Source Part Number: 1339986
  • Voltage - Isolation: 500V
  • Number of Outputs: 2
  • Output Current (Max): 100mA, 100mA
  • Input Voltage: 4.5V to 9V
  • Output Voltage: 15V, -15V
  • Efficiency: 74%
  • Mounting Type: Through Hole
  • Package / Case: 7-DIP Module
