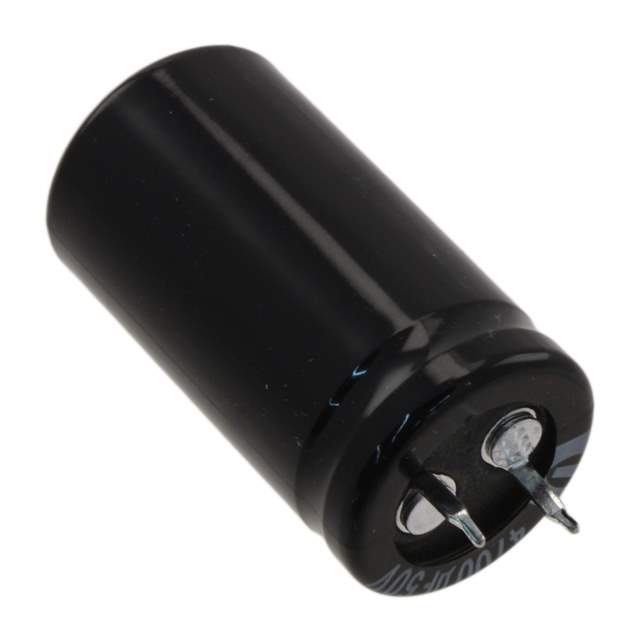

Same model may have multiple batches, images only for reference.

SLPX223M010A7P3

Name: SLPX223M010A7P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307680
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX223M010A7P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX223M010A7P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	22000 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	33mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.79 A @ 120 Hz
Ripple Current @ High Frequency	4.74 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307680-SLPX223M010A7P3
Ultra Librarian 3D Model	Ultra Librarian SLPX223M010A7P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX223M010A7P3 is a radial, can-snap-in aluminum electrolytic capacitor with a capacitance of 22000 µF and a voltage rating of 10 V.

Capacitance: 22000 µF
Voltage Rating: 10 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 33mOhm @ 120Hz
Series: SLPX
Application: General-purpose
Lifetime: 3000 Hrs @ 85°C
Polarization: Polar
Lead Spacing: 0.394" (10.00mm)
Height: 1.575" (40.00mm)
Ripple Current: 3.79 A @ 120 Hz and 4.74 A @ 20 kHz
