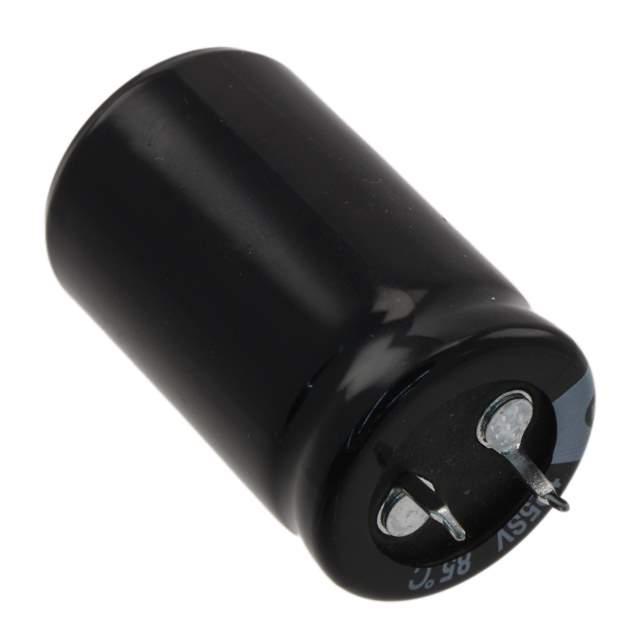

Same model may have multiple batches, images only for reference.

SLPX222M100C7P3

Name: SLPX222M100C7P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307691
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX222M100C7P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX222M100C7P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	121mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.21 A @ 120 Hz
Ripple Current @ High Frequency	4.01 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Other Names	SLPX222M100C7P3,338-1591
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307691-SLPX222M100C7P3
Ultra Librarian 3D Model	Ultra Librarian SLPX222M100C7P3 CAD Model

Description

The 1307691-SLPX222M100C7P3 is an aluminum electrolytic capacitor from Cornell Dubilier Electronics.

Capacitance: 2200 µF
Voltage Rating: 100V
Polarization: Polarized
Tolerance: ±20%
Ripple Current: 3.21A @ 120Hz and 4.01A @ 20kHz
ESR (Equivalent Series Resistance): 121mOhm @ 120Hz
Package: Radial, can-snap-in
Mounting Type: Through-hole
Application: General-purpose
Operating Temperature: -40°C to 85°C
Lifetime: 3000 hours @ 85°C
REACH: Unaffected
ECCN: EAR99
