Same model may have multiple batches, images only for reference.

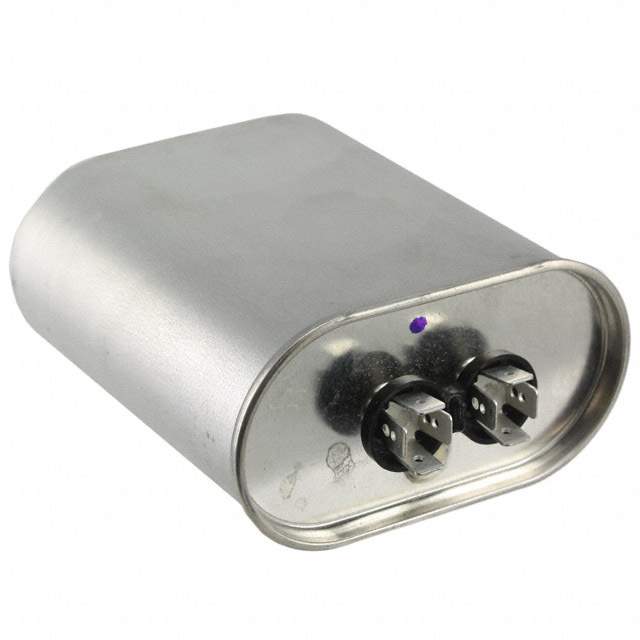

SFD66S20K391B-F Real Image
Same model may have multiple batches, images only for reference.

SFD66S20K391B-F

Part No SFD66S20K391B-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFD66S20K391B-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Product Status Obsolete
Capacitance 20 µF
Tolerance ±10%
Voltage Rating - AC 660V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip
Height - Seated (Max) 4.030" (102.36mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Other Names 338-1897,SFD66S20K391BF,SFD66S20K391B-F
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1302502-SFD66S20K391B-F
Ultra Librarian 3D Model Ultra Librarian SFD66S20K391B-F CAD Model

Description

The Cornell Dubilier Electronics SF film capacitor is used in motor run applications.

  • Capacitance: 20 µF
  • Tolerance: ±10%
  • Dielectric Material: Polypropylene (PP), Metallized
  • Voltage Rating: 660V AC
  • Lead Spacing: 0.810" (20.57mm)
  • Package: Radial, Can
  • Mounting: Requires a holder/bracket for chassis mounting
  • Height: 4.030" (102.36mm)
  • Width: 1.970" (50.04mm)
  • Win Source Part Number: 1302502-SFD66S20K391B-F
