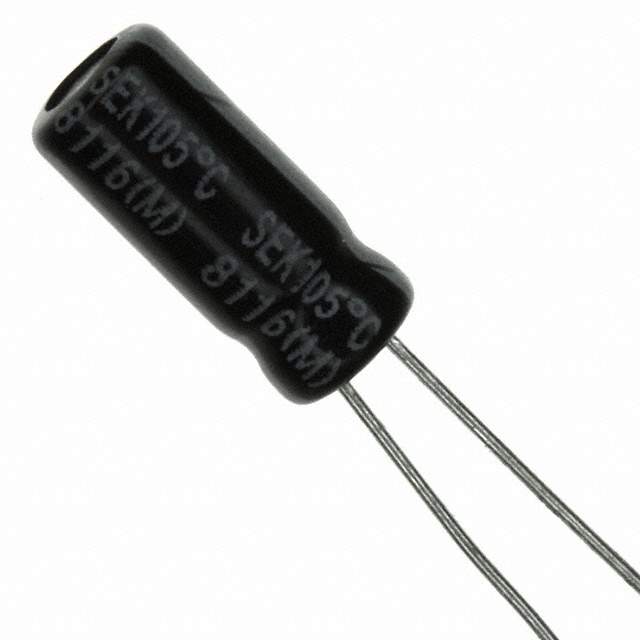

SEK470M050ST Real Image
Same model may have multiple batches, images only for reference.

SEK470M050ST

Part No SEK470M050ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SEK470M050ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SEK
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 3.39Ohm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names SEK470M050ST,2266-SEK470M050ST,338-1717
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308347-SEK470M050ST
Ultra Librarian 3D Model Ultra Librarian SEK470M050ST CAD Model

Description

The SEK470M050ST capacitor from Cornell Dubilier Electronics (CDE) is a radial, can aluminum electrolytic capacitor.

  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Rated Voltage: 50 V
  • ESR: 3.39Ohm
  • Lifetime: 2000 Hrs @ 105°C
  • Applications: General-purpose
  • Diameter: 0.248" (6.30mm)
  • Mounting: Through-hole mountable
