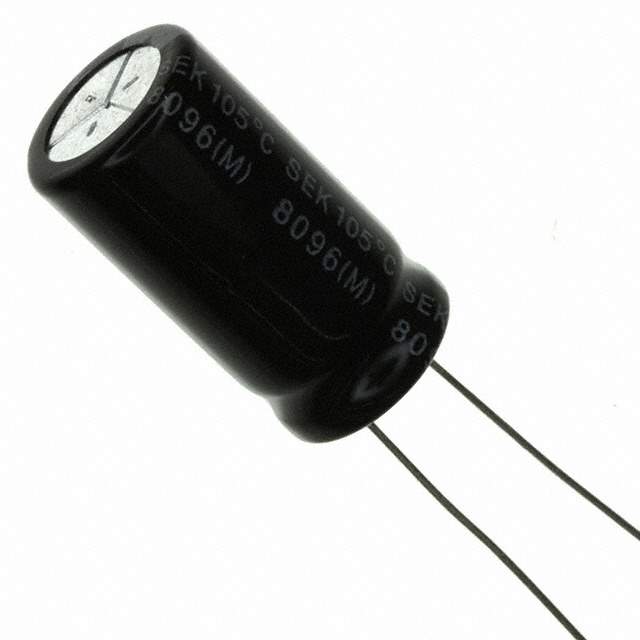

Same model may have multiple batches, images only for reference.

SEK101M160ST

Get a Quote

Part No	SEK101M160ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK101M160ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	1.99Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	330 mA @ 120 Hz
Ripple Current @ High Frequency	528 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.512" Dia (13.00mm)
Height - Seated (Max)	1.024" (26.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308414-SEK101M160ST
Ultra Librarian 3D Model	Ultra Librarian SEK101M160ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) SEK series aluminum electrolytic capacitor is designed for general-purpose applications.

Capacitance: 100 µF
Voltage Rating: 160V
Polarization: Polarized
Tolerance: ±20%
Package/Case: Radial can type
Diameter: 0.512" (13.00mm)
Operating Temperature Range: -40°C to 105°C
Packaging: Bulk of 100 units
Height When Seated: 1.024" (26.00mm)
Lead Spacing: 0.197" (5.00mm)
ECCN: EAR99 compliant
REACH: REACH unaffected
