Same model may have multiple batches, images only for reference.

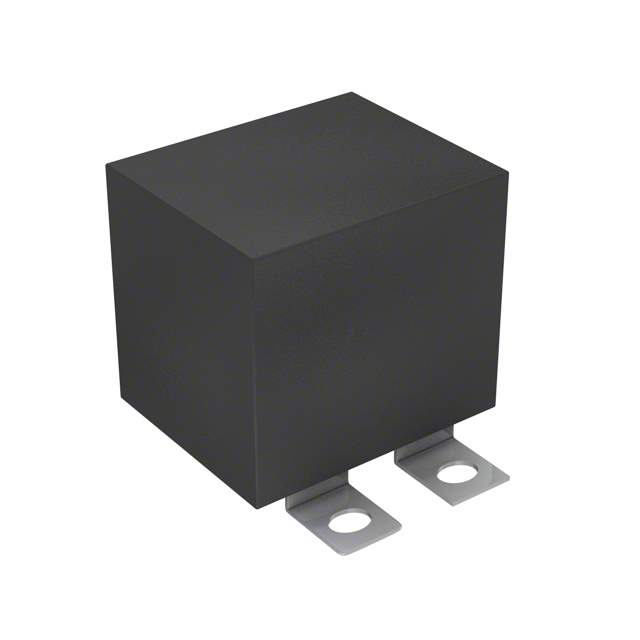

SCD475K601A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD475K601A3Z25-F

Part No SCD475K601A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD475K601A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 4.7 µF
Tolerance ±10%
Voltage Rating - AC 400V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.224" L x 1.827" W (56.50mm x 46.40mm)
Height - Seated (Max) 1.976" (50.20mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Other Names 2266-SCD475K601A3Z25-F
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302658-SCD475K601A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD475K601A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series capacitor is a film capacitor with a capacitance of 4.7µF and a tolerance of ±10%.

  • Capacitance: 4.7µF
  • Tolerance: ±10%
  • Voltage Rating: 400V AC and 600V DC
  • Dielectric Material: Polypropylene (PP) and is metallized
  • Termination Type: Screw terminals
  • Package/Case: Rectangular box
  • Operating Temperature Range: Between -55°C to 85°C
  • Application: Ideal for snubber applications
  • Height: 1.976" (50.20mm) in height when seated
  • Packaging: Bulk packaging
  • Lead Spacing: 1.000" (25.40mm)
