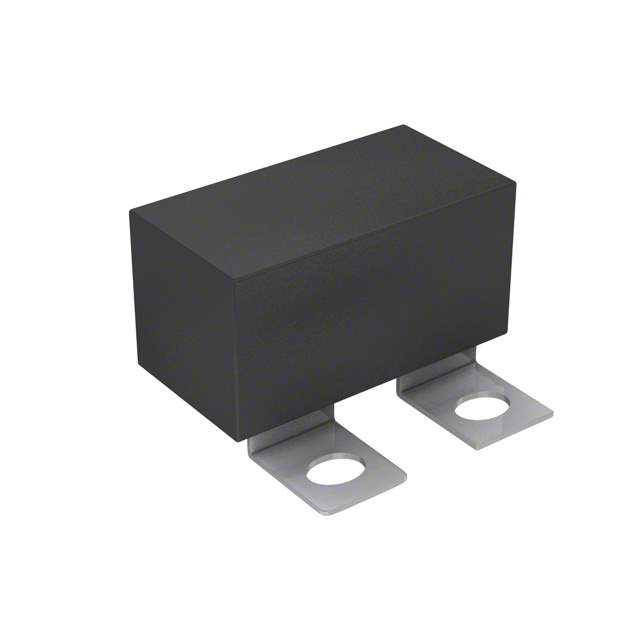

SCD474K102A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD474K102A3Z25-F

Part No SCD474K102A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD474K102A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.47 µF
Tolerance ±10%
Voltage Rating - AC 330V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 11 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 0.969" W (47.00mm x 24.60mm)
Height - Seated (Max) 0.949" (24.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302676-SCD474K102A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD474K102A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series film capacitor is designed for snubber applications.

  • Capacitance: 0.47 µF
  • Tolerance: ±10%
  • ESR (Equivalent Series Resistance): 11 mOhms
  • Dielectric Material: Polypropylene (PP) with metallized coating
  • Voltage Rating (AC): 330V
  • Voltage Rating (DC): 1000V (1kV)
  • Termination: Screw terminal
  • Mounting Type: Chassis mounted
  • Package: Rectangular box
  • Dimensions: 1.850" L x 0.969" W (47.00mm x 24.60mm)
  • Operating Temperature Range: -55°C to 85°C
  • Packaging: Bulk
  • Standard Package: 1 unit
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.25.0080
