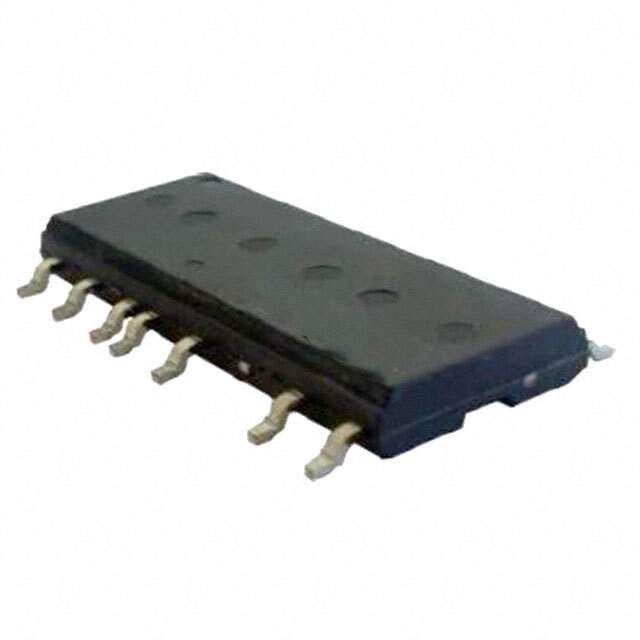

IRSM505-055PA Real Image
Same model may have multiple batches, images only for reference.

IRSM505-055PA

Part No IRSM505-055PA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF-BRIDGE DRVR 3CH 23SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Packaging Tube
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On (Typ) 1.3Ohm
Current - Output / Channel 2.4A
Current - Peak Output 15A
Supply Voltage (V) 13.5V ~ 16.5V
Voltage - Load 400V (Maximum)
Temperature Range - Operating -40°C ~ 150°C
Features Bootstrap Circuit
Fault Protection UVLO
Mounting Style SMD
Manufacturer Package 32-PowerSMD Module, 23 Leads
Supplier Device Package 23-SOP
Manufacturer Pack Quantity 240
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811874-IRSM505-055PA
Ultra Librarian 3D Model Ultra Librarian IRSM505-055PA CAD Model

Description

The Infineon Technologies IRSM505-055PA is a high-quality electronic component that is ideal for use in AC motors.

  • Output Configuration: Half Bridge (3)
  • Voltage Load (Max): 400V
  • Operating Temperature Range: -40°C to 150°C
  • Current Output per Channel: 2.4A
  • Package: 32-PowerSMD Module, 23 Leads
