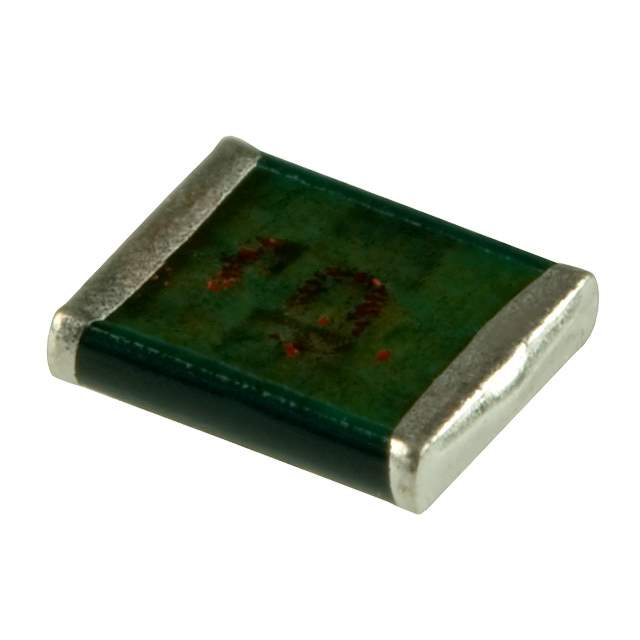

MC12FD560J-F Real Image
Same model may have multiple batches, images only for reference.

MC12FD560J-F

Part No MC12FD560J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 56PF 5% 500V 1210
Datasheet
MC12FD560J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 56pF
Tolerance ±5%
Voltage Rating 500V
Dielectric Material Mica
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Features RF, High Q, Low Loss
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1050435-MC12FD560J-F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC12FD560J-F CAD Model

Description

The Cornell Dubilier Electronics MC12FD560J-F is a high-quality capacitor designed for use in RF applications.

  • Capacitance: 56pF
  • Voltage Rating: 500V
  • Tolerance: ±5%
  • Dielectric Material: Mica
  • Mounting: Surface-mountable
  • Height: 0.079 inches
  • Popularity: Medium
  • Supply and Demand Status: Balanced
