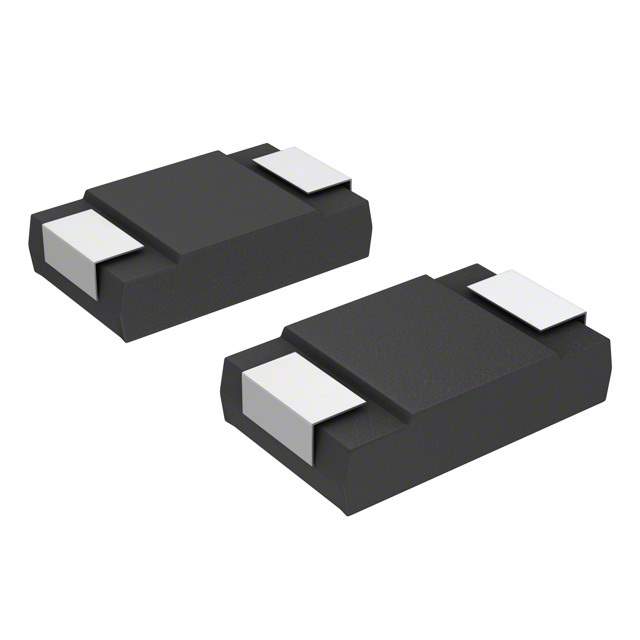

ESRD820M0ER Real Image
Same model may have multiple batches, images only for reference.

ESRD820M0ER

Part No ESRD820M0ER
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 82UF 20% 2.5V SMD / Cap Aluminum Polymer 82uF 2.5VDC 20% (7.3 X 4.3 X 1.8mm) SMD 0.018 Ohm 2500mA 1000h 105°C Automotive T/R
Datasheet
ESRD820M0ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series ESRD
Packaging Reel package
Type Polymer
Capacitance 82μF
Tolerance ±20%
Voltage Rating 2.5V
ESR (Equivalent Series Resistance) 18 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Applications Bypass, Decoupling
Ripple Current - High Frequency 2.5A @ 100kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD
Package 2917 (7343 Metric)
Win Source Part Number 770992-ESRD820M0ER
Popularity Medium
Supply and Demand Status Limited
Family Name ESRD
Introduction Date September 11, 2002
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ESRD820M0ER CAD Model

Description

The ESRD series capacitor is a polymer capacitor with a capacitance of 82 µF and a tolerance of ±20%. It has a voltage rating of 2.5V and is designed for bypass and decoupling applications.

  • Capacitance: 82 µF
  • Tolerance: ±20%
  • Voltage Rating: 2.5V
  • Applications: Bypass and Decoupling
  • Mounting Type: Surface Mount Device (SMD)
  • Surface Mount Land Size: 0.287” L x 0.169” W (7.30mm x 4.30mm)
  • ESR: 18 mOhm
  • Lifetime: 1000 Hrs @ 105°C
  • Package/Case: 2917 (7343 Metric)
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Operating Temperature: -55°C to 105°C
  • Ripple Current (High Frequency): 2.5A @ 100kHz
  • Height: 0.071” (1.80mm)
