Same model may have multiple batches, images only for reference.

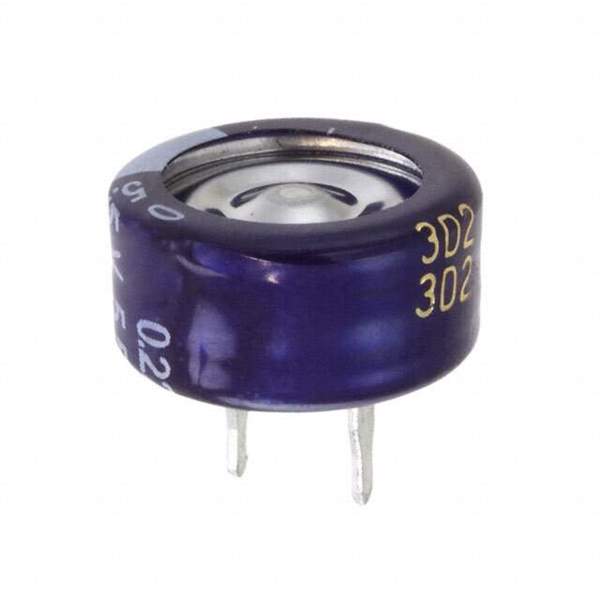

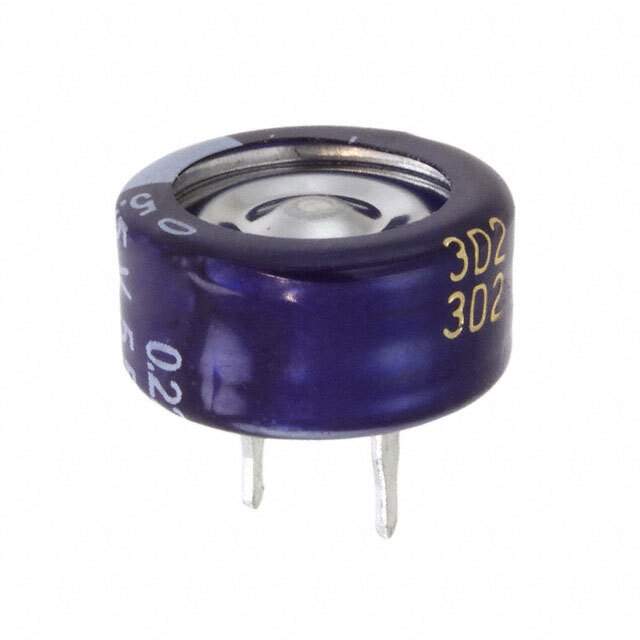

EDLNF224A5R5C Real Image
Same model may have multiple batches, images only for reference.

EDLNF224A5R5C

Part No EDLNF224A5R5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF 5.5V T/H / 220 mF (EDLC) Supercapacitor 5.5 V Radial, Can 75Ohm @ 1kHz 1000 Hrs @ 70°C
Datasheet
EDLNF224A5R5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series NF
Package Bulk
Product Status Obsolete
Capacitance 220 mF
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 75Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 0.295" (7.50mm)
Temperature Range - Operating -25°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names 338-3564,EDLNF224A5R5C-ND
Standard Package 200
Win Source Part Number 1029904-EDLNF224A5R5C
Ultra Librarian 3D Model Ultra Librarian EDLNF224A5R5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1029904-EDLNF224A5R5C capacitor is an electric double layer capacitor (EDLC) or supercapacitor that has a capacitance of 220 mF and a voltage rating of 5.5 V.

  • Type: electric double layer capacitor (EDLC) or supercapacitor
  • Capacitance: 220 mF
  • Voltage Rating: 5.5 V
  • Series: NF series
  • Termination: PC pins
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: 75 Ohm @ 1kHz
  • Lifetime: 1000 hours @ 70°C
  • Mounting Type: through-hole
  • RoHS Compliance: RoHS non-compliant
  • Status: obsolete
