Same model may have multiple batches, images only for reference.

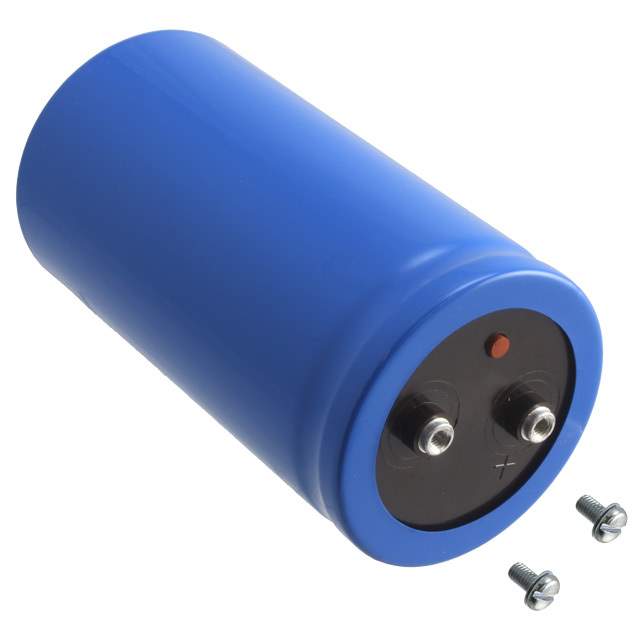

CGS563U050X3L Real Image
Same model may have multiple batches, images only for reference.

CGS563U050X3L

Part No CGS563U050X3L
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 56000UF 50V SCREW / Cap Aluminum Lytic 56000uF 50V -10% to 75% (76.2 X 92.08mm) Screw Terminal 0.005 Ohm 23100mA 2000h 85°C
Datasheet
CGS563U050X3L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 56000μF
Tolerance -10%, +75%
Voltage Rating DC 50V
ESR (Equivalent Series Resistance) 5 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 23.1A @ 120Hz
Ripple Current - High Frequency 30.03A @ 10kHz
Lead Spacing 1.250" (31.75mm)
Dimension 3.000" Dia (76.20mm)
Height - Seated (Maximum) 3.625" (92.08mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775437-CGS563U050X3L
Popularity Medium
Supply and Demand Status Balance
Family Name CGS
Introduction Date August 30, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS563U050X3L CAD Model

Description

The 775437-CGS563U050X3L capacitor from Cornell Dubilier Electronics (CDE) is an electronic component.

  • Capacitance: 56000μF
  • Tolerance: -10%, +75%
  • Dielectric Material: Aluminum Electrolytic
  • ESR: 5 mOhm @ 120Hz
  • Height: 3.625" (92.08mm)
  • Diameter: 3.000" (76.20mm)
  • Lead Spacing: 1.250" (31.75mm)
  • Operating Temperature: -40°C to 85°C
