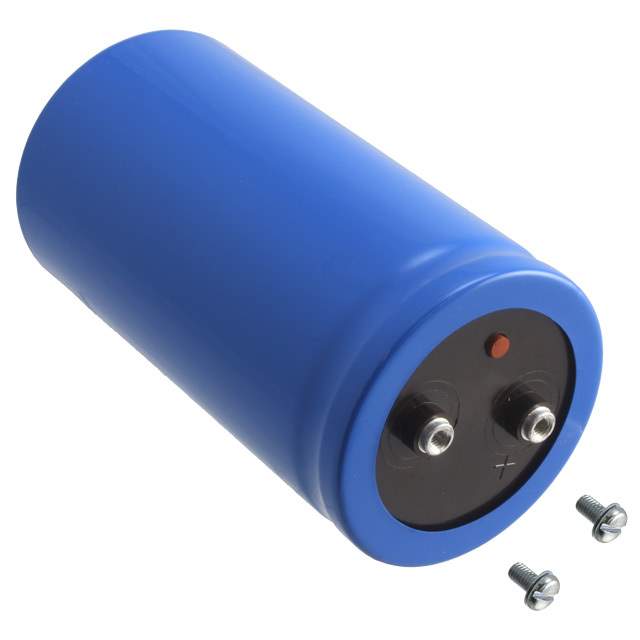

Same model may have multiple batches, images only for reference.

CGS232T500X4C

Name: CGS232T500X4C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 775493
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CGS232T500X4C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 2300UF 500V SCREW / Cap Aluminum Lytic 2300uF 500V -10% to 50% (76.2 X 104.78mm) Screw Terminal 0.047 Ohm 8700mA 2000h 85°C
Datasheet	CGS232T500X4C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	CGS
Packaging	Bulk
Capacitance	2300μF
Tolerance	-10%, +50%
Voltage Rating DC	500V
ESR (Equivalent Series Resistance)	47 mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	8.7A @ 120Hz
Ripple Current - High Frequency	13.05A @ 10kHz
Dimension	3.000" Dia (76.20mm)
Height - Seated (Maximum)	4.125" (104.78mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	775493-CGS232T500X4C
Popularity	Medium
Supply and Demand Status	Balance
Family Name	CGS
Introduction Date	August 30, 2005
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian CGS232T500X4C CAD Model

Description

The Cornell Dubilier Electronics (CDE) 775493-CGS232T500X4C capacitor is a 2300μF polarized capacitor with a voltage rating of 500V.

Capacitance: 2300μF
Polarized: Yes
Voltage Rating: 500V
Tolerance: -10%, +50%
Package: Radial, can - screw terminals
Popularity: Medium
Operating Temperature Range: -40°C to 85°C
Mounting: Chassis Mount
Dielectric Material: Mica
Ripple Current: 8.7A @ 120Hz, 13.05A @ 10kHz
