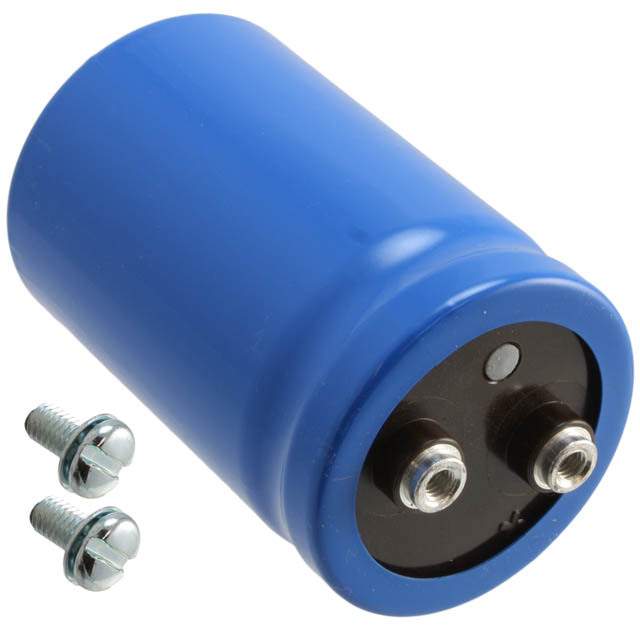

CGS194U025V5L Real Image
Same model may have multiple batches, images only for reference.

CGS194U025V5L

Part No CGS194U025V5L
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 190000UF 25V SCREW / Cap Aluminum Lytic 0.19F 25V -10% to 75% (50.8 X 142.88mm) Screw Terminal 0.006 Ohm 20400mA 2000h 85°C
Datasheet
CGS194U025V5L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 190000μF
Tolerance -10%, +75%
Voltage Rating DC 25V
ESR (Equivalent Series Resistance) 6 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 20.4A @ 120Hz
Ripple Current - High Frequency 26.52A @ 10kHz
Dimension 2.000" Dia (50.80mm)
Height - Seated (Maximum) 5.625" (142.88mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775491-CGS194U025V5L
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS194U025V5L CAD Model

Description

The CDE CGS194U025V5L is a capacitor manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 190000μF
  • Packaging: Bulk
  • Tolerance: -10% to +75%
  • ESR: 6 mOhm @ 120Hz
  • Ripple Current: 20.4A @ 120Hz, 26.52A @ 10kHz
  • Voltage Rating DC: 25V
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Limited
