Same model may have multiple batches, images only for reference.

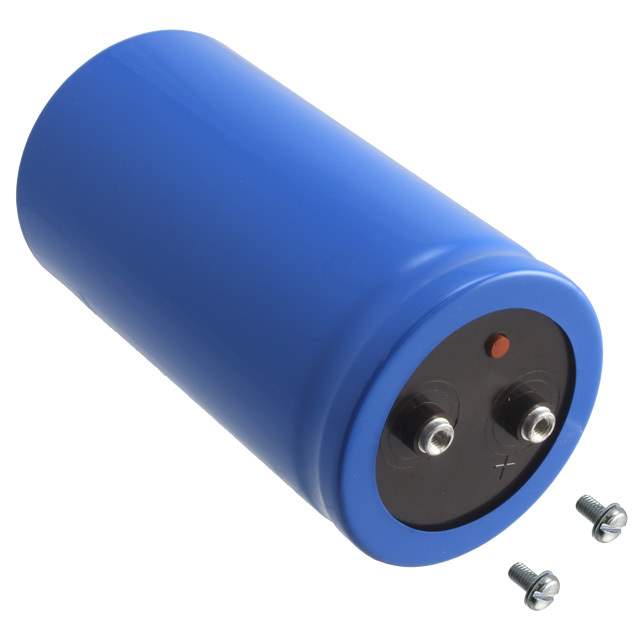

CGS104U016X5C Real Image
Same model may have multiple batches, images only for reference.

CGS104U016X5C

Part No CGS104U016X5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 100000UF 16V SCREW / Cap Aluminum Lytic 0.1F 16V -10% to 75% (76.2 X 130.18mm) Screw Terminal 0.007 Ohm 22500mA 2000h 85°C
Datasheet
CGS104U016X5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 100000μF
Tolerance -10%, +75%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 7 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 22.5A @ 120Hz
Ripple Current - High Frequency 29.25A @ 10kHz
Dimension 3.000" Dia (76.20mm)
Height - Seated (Maximum) 5.125" (130.18mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 777802-CGS104U016X5C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS104U016X5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS104U016X5C capacitor is manufactured by Cornell Dubilier Electronics (CDE).

  • Series: CGS
  • Capacitance: 100000 µF
  • Tolerance: -10%, +75%
  • ESR: 7 mOhm @ 120 Hz
  • Lifetime @ 85°C: 2000 hours
  • Polarity: Polar
  • Mounting Type: Chassis
  • Applications: General Applications
