Same model may have multiple batches, images only for reference.

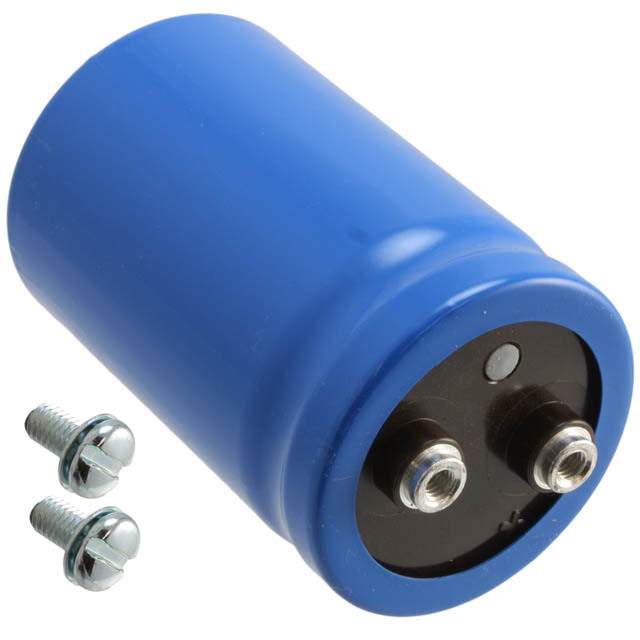

CGS103U075V3C Real Image
Same model may have multiple batches, images only for reference.

CGS103U075V3C

Part No CGS103U075V3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 75V SCREW / Cap Aluminum Lytic 10000uF 75V -10% to 75% (50.8 X 79.38mm) Screw Terminal 0.041 Ohm 6200mA 2000h 85°C
Datasheet
CGS103U075V3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 10000μF
Tolerance -10%, +75%
Voltage Rating DC 75V
ESR (Equivalent Series Resistance) 41 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 6.2A @ 120Hz
Ripple Current - High Frequency 8.06A @ 10kHz
Lead Spacing 0.875" (22.22mm)
Dimension 2.000" Dia (50.80mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 777801-CGS103U075V3C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS103U075V3C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS103U075V3C is a radial, can - screw terminal capacitor with a capacitance of 10000μF.

  • Polarization: Polarized
  • Voltage Rating DC: 75V
  • Tolerance: -10%, +75%
  • ESR (Equivalent Series Resistance): 41 mOhm @ 120Hz
  • Mounting Type: Chassis Mount
  • Lead Spacing: 0.875" (22.22mm)
  • Ripple Current: 6.2A @ 120Hz, 8.06A @ 10kHz
  • Height: 3.125" (79.38mm)
  • Dimension: 2.000" Dia (50.80mm)
  • Applications: General Applications
  • Popularity: Medium
  • Supply/Demand: Limited
  • Estimated EOL Date: 2027
